help for evolving groove

[piff91]

Hello everyone, amateurly, I'm drawing a car change. I write because I'm in front of a problem. I do not find online formulas that help me to draw the profile channeled to evolve, should be uni iso 4156. Can someone give me a tip?



[MassiVonWeizen]

https://www.unisalento.it/documents/20152/200588/collegamenti_smontabili_non_filettati.pd



[piff91]

https://www.unisalento.it/documents/20152/200588/collegamenti_smontabili_non_filettati.pd

Thank you, forgive me but for the evolved I found only p59 an image. for calculation (e.g. dprimitivo) proceed as for a toothed wheel except for addentum and dedentum?



[piff91]

perfect, I did.



[meccanicamg]

Can you show us?



[piff91]

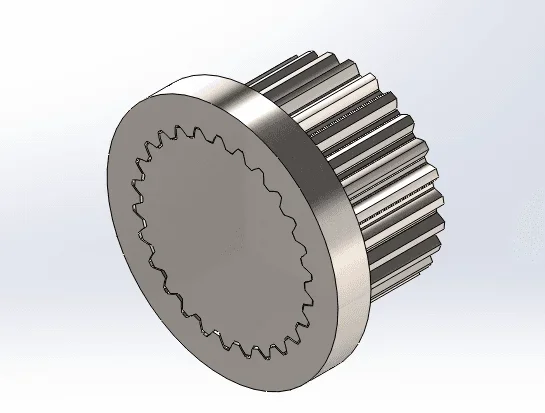

va bene?
