help on conical dense wheels

[VonMotor]

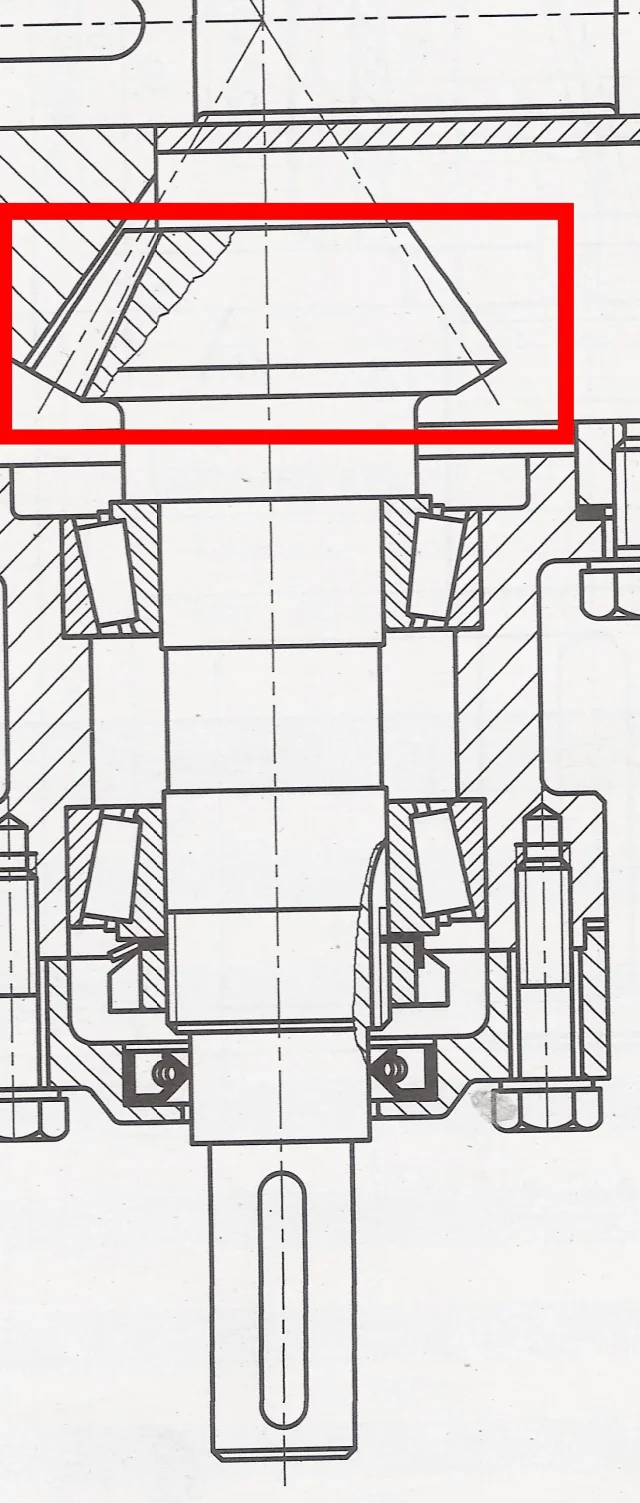

Hi, I wanted to ask you how you can make (or get from toolbox) this conical toothed wheel, but it doesn't have the raised edges but cut as in the image. thanks and hello



[luca1669]

the toothing does not change, it only changes the body of revolution from which you will subtract your teeth. then or change the sketch of the revolution or cut the solid before or after toothing is indifferent. if the toothing is conical spiraling looks at the discussion "synusoidal dentate rhota" for how to achieve the toothing.



[meccanicamg]

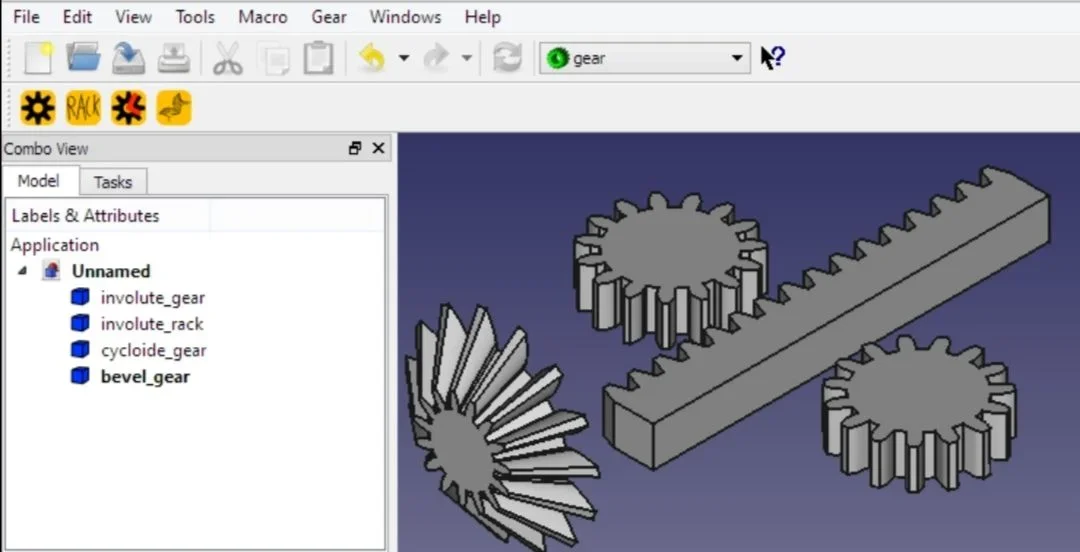

using freecad with workbench fcgear it is possible to make conical wheels with straight and helical teeth. then you can export in step and import into any cad and it is free.from the standard conical wheel comes back posteriorly.
It is essential to know the right geometric parameters.
advice This is post.
