Hello, everyone.

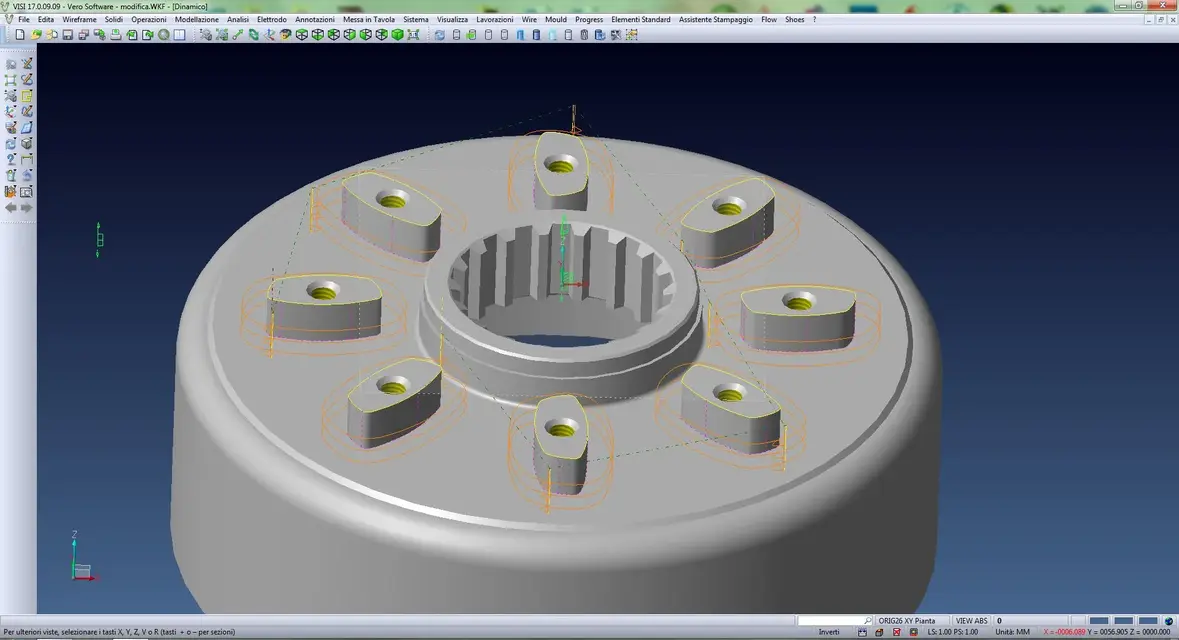

I'll get you a picture of the path I'm supposed to process.
if you notice I have the origin exactly in the piece center and with pointer near the punch that marks me a maximum "y" of about 57mm.
well, when I run "compass", and select the post process fanuc, known that the file has two errors.
first of all curves I perform them in linear interpolation with an infinite set of points, but above all it gives me as shifts in "y" very high values type y1220.
%
o1 ( output file name - edit.nc)
n1( wkf file name - edit.wkf)
n2(date - 04/10/12)
No.
No
n5(fresh 2 cutting edges diam. 10.)
#6 m2
n7 m2500
No.
n9. )
n10( contouring)
n11 g0 x-57.064 y1212.18
n12 g90 g43 z5.722 h6
n13 z-4.918
n14 g z-9.798 f1000
n15 g17 g41 x-55.129 y1219.425 d6
n16 x-55.952 y1219.645 f2000
n17 x-56.764 y1219.888
n18 x-56.869 y1219.925
n19 x-56.939 y1219.955
n20 x-57.031 y1220.001
n21 x-57.091 y1220.035
n22 x-57.169 y1220.086
n23 x-57.27 y1220.162
