how to draw thick lines without setting the thickness

[gil]

Hi.
Sometimes, using autocad I get drawings that contain lines of thickness much greater than standard ones. I attach explanatory image to you.
Note that the “sln” option is therefore disabled the thickness difference, with the above line, was not set in the layers. in the properties I read that it is a polyline but I continue not to understand how to get this effect.

Do you have any suggestions?

gil



[MassiVonWeizen]

in polylinea there is the property global larghezza that allows to give thickness to the object



[Cristallo]

It's a thick polyline.
the thickness is assigned in the design phase or even after, through the property panel



[gil]

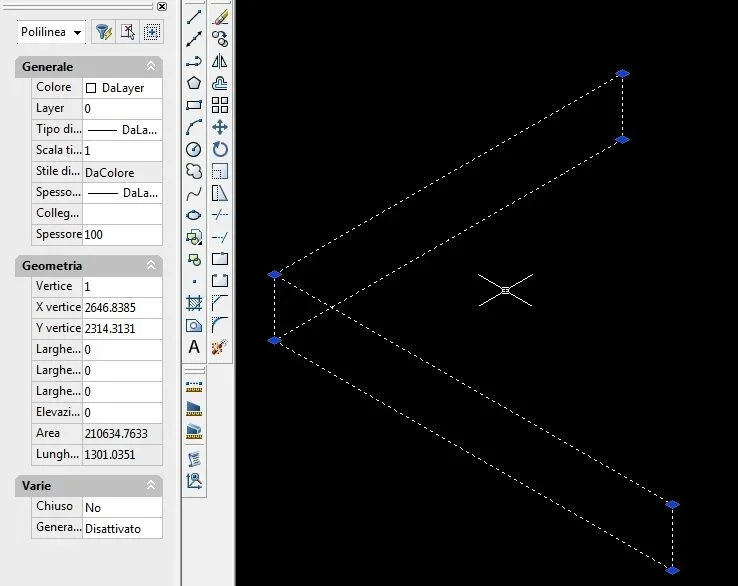

I tried to check the polylinee settings. but if I insert the thickness, I get some kind of extrusion. the view in the plant does not change. I attach image.
Instead, in the image of the first post, looking in the plant the lines you see thick down, but not an "extrusion".



[MassiVonWeizen]

So if you look at the line of the first post as you see it?



[GP.]

you do not have to set the thickness, but the global larghezza (six boxes below).



[Tristan]

in polylinea there is the property global larghezza that allows to give thickness to the object

I tried to check the polylinee settings. but if I insert the thickness, I get some kind of extrusion.

gil, you're a little distracted. :36_1_12:
