I would need to understand how to insert a set (spec of a railing) in another together (construction perimeter) so that according to the length of the perimeter the mirror repeats n times
MassiVonWeizen
Guest
First of all good evening is your first message and greets and shows up.
then iam is a file of inventor
Finally what does a railing mirror mean? if a file derived from another cannot do anything else you have to create an equation that according to the length of the perimeter and the spacing between the railings calculates the length of the latter; what is feasible and already processed in this forum
then iam is a file of inventor
Finally what does a railing mirror mean? if a file derived from another cannot do anything else you have to create an equation that according to the length of the perimeter and the spacing between the railings calculates the length of the latter; what is feasible and already processed in this forum
fulvio il nero
Guest
Sorry if I didn't introduce myself you're right, my name is fulvio and I'm an old school iron carpenter, as I never designed jobs but I did it in the workshop following measurements and details of the technical office. You're right I'm confused with the files since I try to learn to make some small project using both inventor version 2016 and solidworks version 2018 . as to the mirror I mean a workmanship that needs to be inserted in a frame where inside In short, I would like to create models that I have already made, but to make them changeable in measures according to my needs.
MassiVonWeizen
Guest
how it is structurally composed the railing is not important, but instead it is as it is modeled.
to do what you ask you have to work on the membership. this means that a certain railing can only be used on the specific one together because there will be references between the files.
understand how a parametric cad works is basic to know what modeling strategy to use and if you can get the desired results.
If you want to use a railing file on different assemblies you need to approach reasoning in another way and do some tests to check if it works.
If you are using cads by going to arm and spraying some videos occasionally I assure you that it is not the right method to learn. do internal tutorials to understand modeling logic and learn how to use commands correctly.
please pay attention to the terms you use to not create confusion in those who read you because using the term mirror, which I have never heard in any area of carpentry, implies a correlation with a specific function of solidworks
fulvio il nero
Guest
Thank you for answering me, but where do I find these tutorials?
MassiVonWeizen
Guest
fulvio il nero
Guest
Good morning and thank you for the tips, now I go to study them and try to put them into practice for my project. Another thing to ask, for two days I try to make the value appear when I insert the quota, i.e. in the sketch the quota line appears but it is not reported the measure, but I see it in property manager, I do not know what happened, in the saved parts previously it works all regular
MassiVonWeizen
Guest
I have no idea what you're talking about
fulvio il nero
Guest
However everything started when I created a particular type of tubular profile to insert it into the library of structural elements
fulvio il nero
Guest

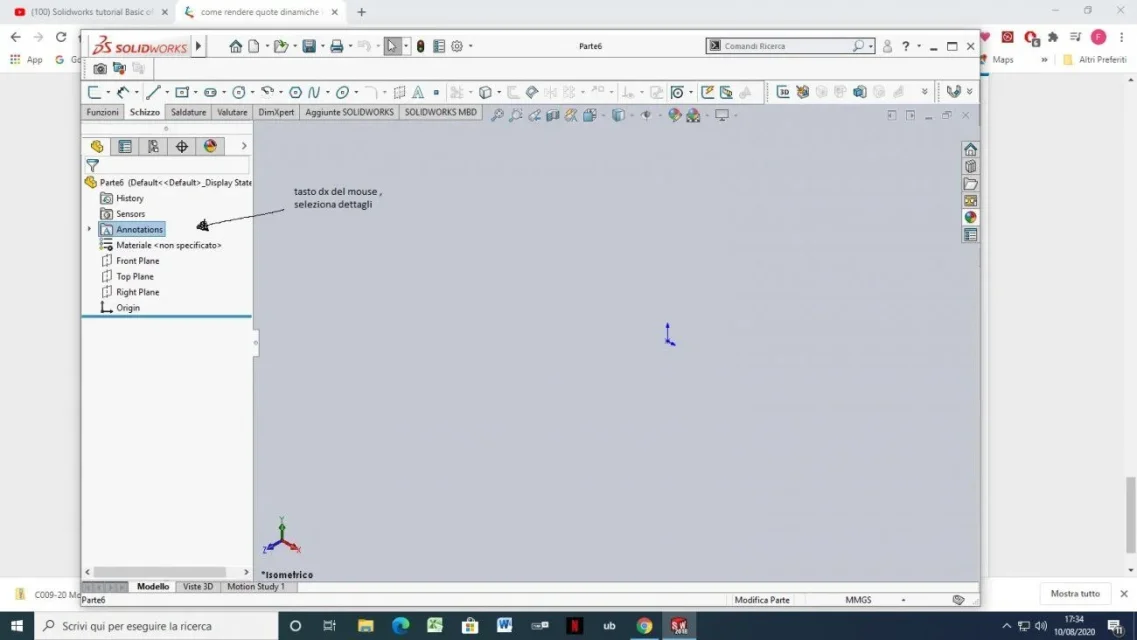

I managed to solve the problem, going into annotations, details, annotation properties, in the text scale the report was 1:50 I brought it 1:1 and it works properly as before. I'm sorry if I bothered you about this nonsense, I guess you'll have more serious problems to solve, thank you.
MassiVonWeizen
Guest
and dove sarebbe questa cosa?
fulvio il nero
Guest
in the feature manager design tree by selecting the part you are working
