therefore some cads are precluded to this possibility.

Sure, the difference you make in options.
take into account that with the cad you can always find the solution, then there are other cads that the solution you want makes it easier



[flaviobrio88]

you can do it or with the first method or with the second method:::

I used both to extend the curve to the etremities:biggrin:

i.e. offsetcurva then scketch of the set on the pianoxy and then reproduce on the surface

but it was good also only to offset the curve following the surface as direction

Clear, but can you select more curves on multiple surfaces at the same time and then the cad is calculated which are the already-centered ones to be translated?
or for each curve you have to select its surface and then select one by one?



[Exatem]

I thought it was a three-seven player.

Whatever. . .

in three seven the fourth is good by force (if you play three seven with the dead). .
of the truth that this story of the fourth-buono you like as that of the bolzone. . .



[Er Presidente]

in three seven the fourth is good by force (if you play three seven with the dead). .
of the truth that this story of the fourth-buono you like as that of the bolzone. . .

I had a moment missing, then I realized that it's the classic thing that no one can understand, and then it becomes like the Latin Mass, the more it's destroyed and the more it looks like "colti".
then in the workshop they give us on two bats and away...
:biggrin:



[RS4]

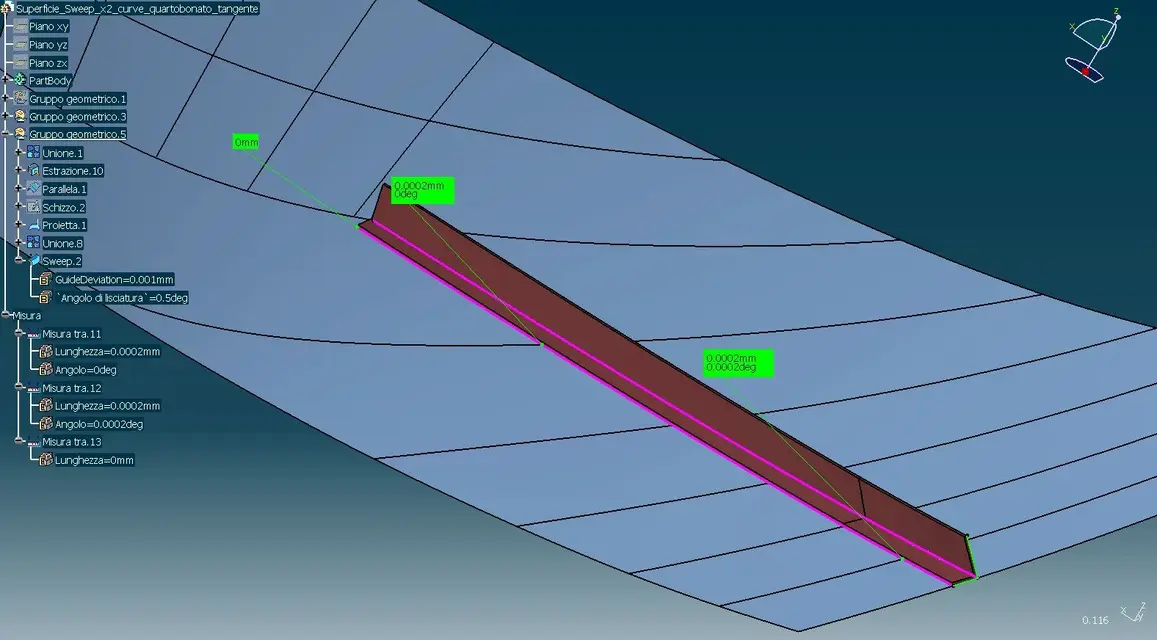

this is made with a sweep.
you have the exact size 90x150 and the maximum shift compared to the surface is about 2 cents of millimeter, I would say it is a good precision.

I also used the simple sweep for 2 curves with initial profile,
the deviations detected on the curves are at 0mm practically certainly in the center there is a few centimeters or less allego quotas in img

size 90x150 as you max

allego files and img

Hello



[Exatem]

I had a moment missing, then I realized that it's the classic thing that no one can understand, and then it becomes like the Latin Mass, the more it's destroyed and the more it looks like "colti".
then in the workshop they give us on two bats and away...
:biggrin:

If I go to the "smith" and tell him he has to do one. "sweep simple for 2 curves with initial profile" (Laughter rs4 if I use your sentence for example) gives me a couple of folds on the gap after warming me to the white heater. . .



[maxopus]

I also used the simple sweep for 2 curves with initial profile,
the deviations detected on the curves are at 0mm practically certainly in the center there is a few centimeters or less allego quotas in img

size 90x150 as you max

allego files and img

Hello

this is the solution, the error is at least two orders of magnitude lower than the work of the workshop and the modeling must be fast and you can not be there to waste time to make a piece that in reality will never be as you modeled it.



[RS4]

Clear, but can you select more curves on multiple surfaces at the same time and then the cad is calculated which are the already-centered ones to be translated?
or for each curve you have to select its surface and then select one by one?

noo no the curve to be translated you can select one at a time to offset it on the surface..... as you do with multiple curvesnot is possible

If I go to the "smith" and tell him he has to do one. "sweep simple for 2 curves with initial profile" (Laughter rs4 if I use your sentence for example) gives me a couple of folds on the gap after warming me to the white heater. . .

hiihihihih:biggrin: aiaiai che sorrow dal mastro Ferrar.r.rro

I'll explain with the sweep between 2 curves

step 1 highlighted curve etrapolata
step 2 offset of the same at 90mm constant on surface
step 3 profile you want to get l or other
step 4 sweep

the quicker the sweep if you have to do more than 200 ordered but you must also have the surface where lies the curve well closed and clean!! but if you want to split the 0... but you don't need to, so much the master of ferr..ro will never release it from using other internal sections in correspondence of the ribs of the surfaces then you will have a masterpiece but you want us more work using a multisection as a function

I hope I've been clear

ok marco

this is the solution, the error is at least two orders of magnitude lower than the work of the workshop and the modeling must be fast and you can not be there to waste time to make a piece that in reality will never be as you modeled it.

you just max was just to demonstrate the various solutions and the ability to do things as we have shown there are more ways to do the same then depends one thing you want to have as final product, in terms of time available


Hi.



[flaviobrio88]

noo no the curve to be translated you can select one at a time to offset it on the surface..... as you do with multiple curvesnot is possible

it is possible

offset jacent all curves all surfaces each curve that touches the surface moves accordingly
if it does not touch the surface does not move

like the jacent size, I don't think that if you have to cut a surface with a curve already, you have to select one at a curve and surface



[RS4]

it is possible

offset jacent all curves all surfaces each curve that touches the surface moves accordingly
if it does not touch the surface does not move

like the jacent size, I don't think that if you have to cut a surface with a curve already, you have to select one at a curve and surface

I had misunderstood every offset curve on the sulerficie moves isoparametric to the same right:biggrin: and then you can use it also to cut pear to slide the curve on that surface this must be well closed and clean
