lamera imbuitura

[volaff]

Hello everyone, I have a problem with the fun.

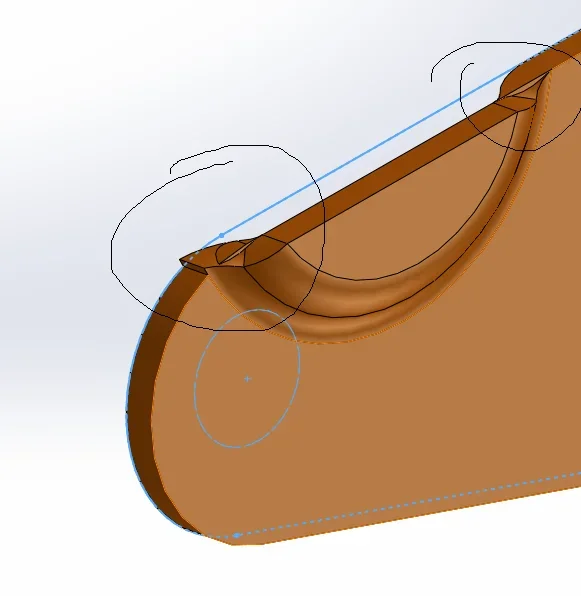

the part imbuted "must welcome" another part and I would like the part of sheet metal circled to be without over material in the highlighted area.

Is there a way to make the part on the edge straight and not that obbrob I did?
In practice I would like to have no discontinuity as in my case

Thank you very much to all.



[MassiVonWeizen]

the one on the right seems normal for me to make a porcade since the sketch of the sting (green scrap in my image) comes out from the shape of the sheet (red disk)
regarding the general problem of the generation of that depression lacks the library file of punching. However fix discontinuity using the delete face command with the delete & patch option.
it doesn't make sense to do the sheet metal part if you then punch as the latter cannot be spread



[volaff]

Good evening.
Thank you very much for the answer.
the problem of the "porcata" is related to the fact that, it is true that the green sketch comes out from the red one, but if the green sketch was in line with the red one, the straight trait of the punch is "catcher" to the curved one of the lower part for which comes out the disgust.
Now I am on another pc, the problem is the punch near a curved part.



[Mike1967]

Good evening.
Thank you very much for the answer.
the problem of the "porcata" is related to the fact that, it is true that the green sketch comes out from the red one, but if the green sketch was in line with the red one, the straight trait of the punch is "catcher" to the curved one of the lower part for which comes out the disgust.
Now I am on another pc, the problem is the punch near a curved part.

try to do all the "revolve" (you will have to change your punch)
to function and then with an extruded cut cuts the excess part.. .



[volaff]

try to do all the "revolve" (you will have to change your punch)
to function and then with an extruded cut cuts the excess part.. .View attachment 46913View attachment 46914

Good evening.
I had also thought of this possibility but the punch gave me error (because in the example I simplified the punch because in reality the sheet is punched by more than one form, in practice they are two different forms one above and one below); and it is right under that I have the circular part "united" to a different form.

thanks for the always valuable answers.
Good evening friends!



[Mike1967]

Good evening.
I had also thought of this possibility but the punch gave me error (because in the example I simplified the punch because in reality the sheet is punched by more than one form, in practice they are two different forms one above and one below); and it is right under that I have the circular part "united" to a different form.

thanks for the always valuable answers.
Good evening friends!

you can always adopt the same strategy by adding the different cutouts extruded to each application forming tool.



[volaff]

you can always adopt the same strategy by adding the different cutouts extruded to each application forming tool.

I actually wanted to do everything in a couple of forms even if the forms are at least 3.
In summary you are suggesting to make shapes and then the different cuts to shape.

Thank you so much!!



[Mike1967]

I actually wanted to do everything in a couple of forms even if the forms are at least 3.
In summary you are suggesting to make shapes and then the different cuts to shape.

Thank you so much!!

mine is a supposition, as is the one that maybe applies the various forming tools and eventually cuts the parts that you do not need. . .
but you understand that without the original file it is difficult to fix the best solution..



[volaff]

thank you very much for the interest in any case



[xxfast]

I would try to reconstruct the model by subtraction of solids, if it is not a part that should be obtained by molding.
