lamiera ondulata

[emy75]

hello and good morning to all, I just started using inventor 2018 , I wanted to ask for advice on how to make a corrugated sheet.
I press that design in 2d as self-taught and I would like to learn 3d, I can do different things but I need to make drawings with the use of undulating sheets.
Can anyone help me? ?

thanks in advance. ...



[Matteo Cappelli dis.CAD]

can you post a 2d dwg file or a photo to understand what you mean by corrugated sheet?

Thank you.



[emy75]

good morning, sorry for the delay, I attach a file with the profile of the corrugated sheet that I generally use for the drawings of my plants.
I want to point out that I am self-taught, so I accept any criticism that helps me improve.
Thank you.



[emy75]

I'm sorry, to understand better I attach another file to make the idea of what I'd like to do in 3d



[TECNOMODEL]

you just create a sketch with the sheet profile and extrude it.
Using i-parts you can also configure everything in various formats, then from time to time insert the sheet of the size that you need.



[emy75]

you just create a sketch with the sheet profile and extrude it.
Using i-parts you can also configure everything in various formats, then from time to time insert the sheet of the size that you need.

hi, I am trying, but : if I create profile and extrude it does not allow me to make holes on the surface, it takes me as selection only the part of the profile, if the profile sketch I make it become sheet.... in this case the thickness would be the length of the sheet, and I can make holes always only on the side of the profile... .

Maybe I don't understand.



[TECNOMODEL]

Natural that you don't take the sheet to make a sketch, it's not a plan.
create a building plan perpendicular to the holes you want to create, do the sketch on that and then use it to make holes.



[emy75]

Thank you, I tried and got the result I wanted, I chose the suitable material and the galvanization, now I can say it's quite easy :wink:
Now I'm quoting myself in the company to displace it so I can form the cylinder. Do you have any indication?

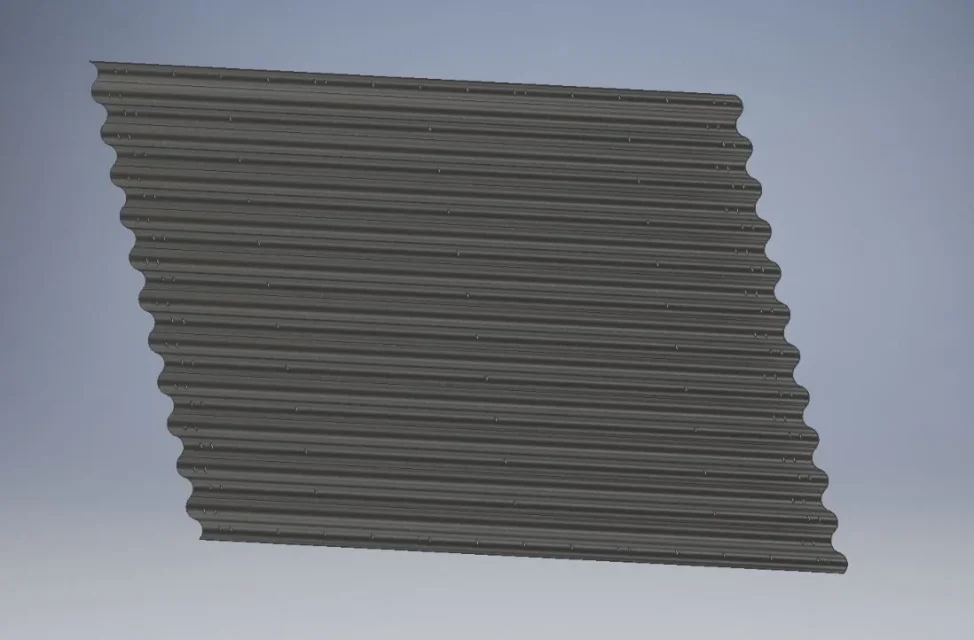

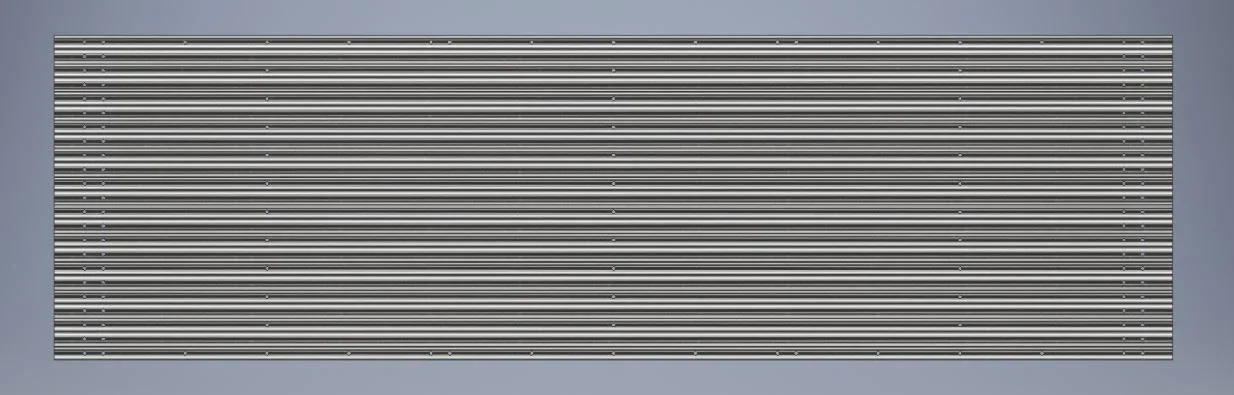

I attach photos of the result



[TECNOMODEL]

I'm sorry, but I don't deal with sheet metal, I don't know the controls of this environment.



[emy75]

Good morning, to keep you informed. . .
Unfortunately what I got is not a sheet, it is an extruded profile that is not working as a sheet... .

I'll do more tests and let you know, if you have any other indications,



[Matteo Cappelli dis.CAD]

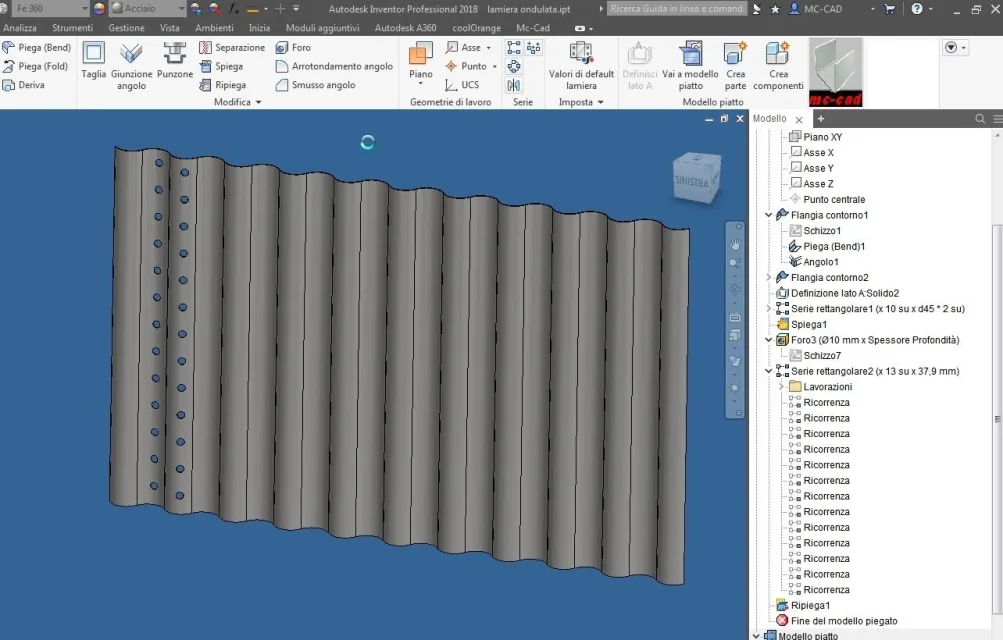

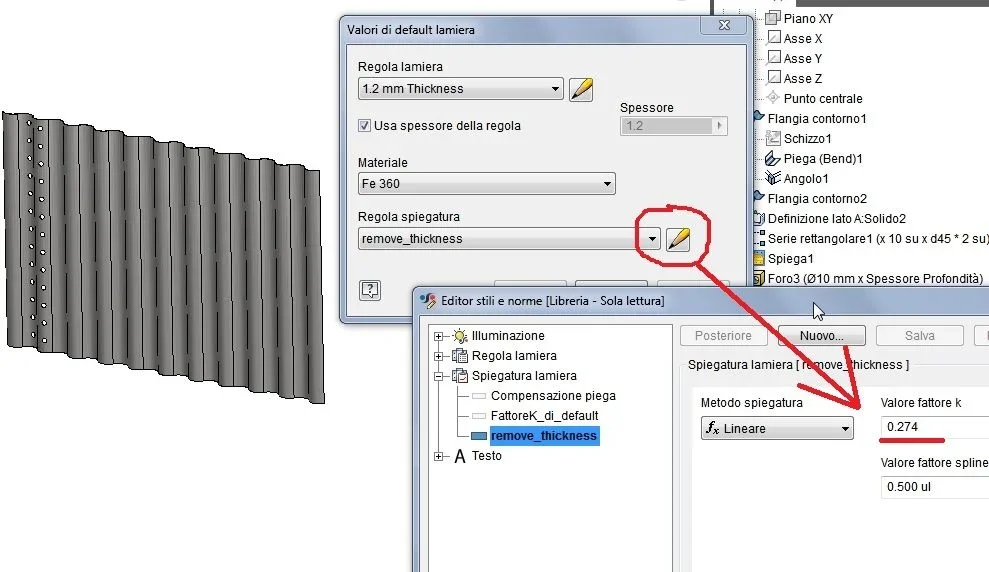

you need to create a 2d-profile sketch using the arc commandwith the border flange command create the 3d and then run the seriesvia fx parameters I renamed the variables so that with little you can create othermust act on the k factor in the sheet style to calculate the correct developmentas regards the hori I have made an example; are to be done with the plane model through the command explains and folds

allego file

Hi.



[emy75]

Good morning and excuse for absence, I was out for work,
Thank you very much, you were excellent also in the explanation. ...
