[mechanical 2014] tree generator: remove accessories leaving caves and seats.

[Vit1]

Good morning, I have to quote a tree.

I have the following problem: I would like to remove from a tree on which there are various mechanical elements accessories (key, tongue, elastic ring, etc.) the various elements leaving the seat of the same. At the moment I used the simplified representation that displays the elements and some accessories (for example two intersecting axis lines where an elastic ring should stand) that I must then remove manually.

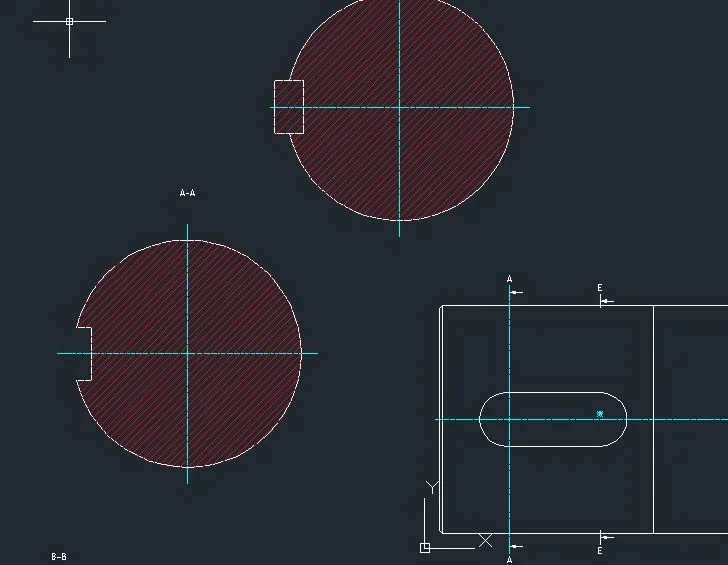

Moreover the tab, how much I go to represent the view in section, is displayed (as seen in the section e-e, created by the generator trees) and is not represented the only seat (view a-a, created by hand).
How can I do that? Thank you!



[Vit1]

I would also like to disappear the reference symbols part (since there is no longer the part but only its seat). I know that, according to their layer, they can be easily deleted in print but I would like to succeed draw only the "seeds" of the various elements. grazie!



[GiGa]

But when you insert the tab, you'll get the "sign part"?



[Vit1]

But when you insert the tab, you'll get the "sign part"?

I had tried the option and it didn't work, now making a drawing from head seems to work! I obviously had made some explosions of too much in the previous file and remained lines below. Thank you!
