model resolution

[MaiMollare]

Good morning

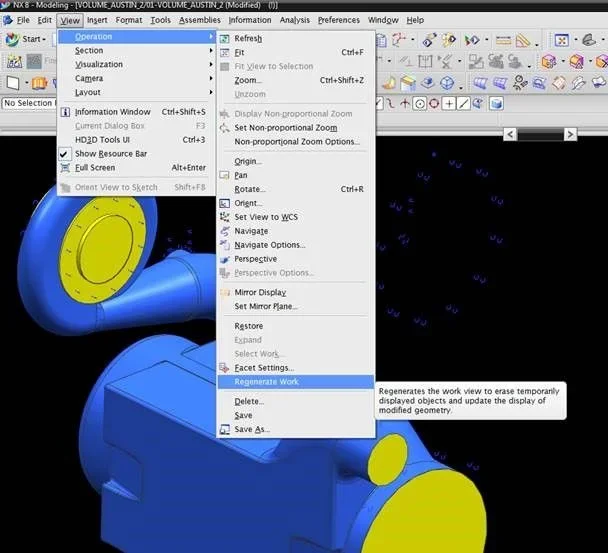

when I open a set in nx8.5, not even so heavy, I see the figure video with all cylinders in square shape (see picture).
I used the command: "regenerate work" but does not work.

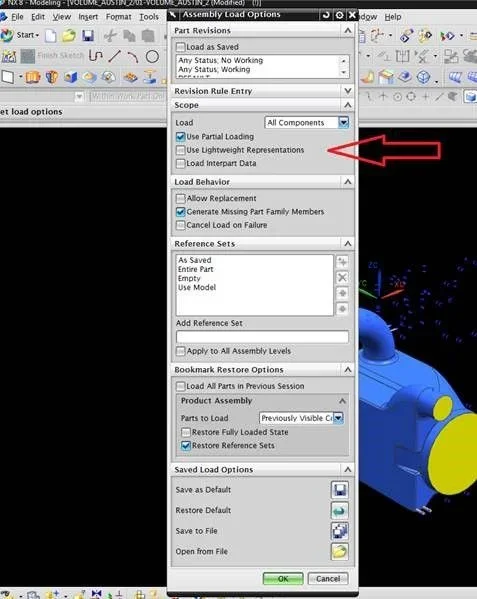

My American colleagues have proposed to me to uncheck the setting: "use lightweight representation" but was already unchecked (see images)
Do you have any other advice to give me, please?



[ceschi1959]

upload options have nothing to do with this, they are display settings. I don't have the 8 installed, in 9 go to visualization preferences and go to faceting tab. There you find tolerances to set.
Try and let us know.
Hi.



[MaiMollare]

Hello baskets
I found the command you recommended and setting the resolution on accurate the situation is greatly improved. Now I try changing resolution values manually.
Thanks again



[Utente NX]

loading options have to do with it, it is one of the first things you look at. then if you do not solve, you go to see other solutions.
