monolithic scale with non parallel lifts

[infoblulinea]

good evening, in a refurbishment I find myself building a monolithic scale with the lifts not parallel to each other; revit draws me the finish (lifted and peeled) but not the monolithic part of the scale... Does anyone know how to help me?
Thank you very much



[Tristan]

using the drawing scale (not for components) you can draw the lifts as you want, not only not parallel but also shape any



[infoblulinea]

Thank you very much for the answer.. .
I did as you say, unfortunately when I diverge the lines of the lifts, I disappear the monolithic part under the staircase.



[infoblulinea]

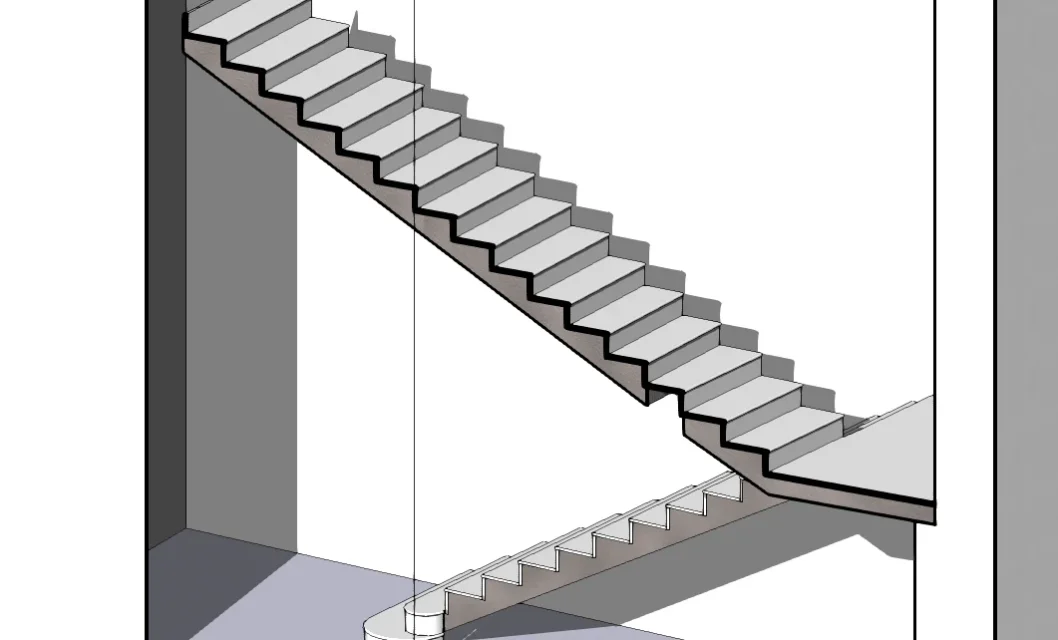

sending images



[Tristan]

What version of revit are you using? Can you attach the file?



[infoblulinea]

use revit2016...how do you attach files? I can't load. . have a maximum size?
