overall design

[MBT]

But...
Oh, my God!
It's like it's the shopping list, but big! And remember that you have a wife who can't take the right things!

1) drawing code, or progressive if by trade
2) Description
3) quantity
4) dimensions (maximum if drawing, nominal if by trade)
5) Material
6) weight
7) notes

of the type:
123456 - body - 01 - 1500x100x800 - s275jr en10025 - 450kg - perform relaxation vsr
123457 - lid - 01 - 1500x800x10 - s275jr en10025 - 30kg - //
01 - vine te - 06 - m20x100 - cl 8.8 - 0.1kg - black phosphate.

etc.



[Tequila]

.... 2+2=4, there is not much to discuss. . skin

my mechanics prof always said that 2+2 makes minimum 4, because in mechanics it is necessary to be in safety



[marcolino91]

Hey, guys. I was also given the task of drawing this overall. But not on autocad... Showing it to my pro doesn't suit her bearings. . She told me that I can replace them with the appropriate symbology... she told me that I can insert the symbol +...

taking inspiration from an ornitoric bearing... the + symbol I have to replace it inside the red square, don't I?



[PierArg]

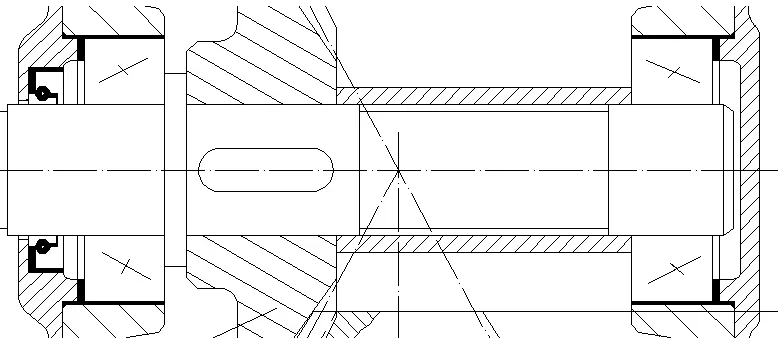

attention that in the red square you also inserted that black rectangle that looks like a thickness. What is it?
be careful that the simple + is used only on single crown ball bearings.
your is tapered rollers so you have to put this symbol:



[marcolino91]

Is it a lip seal?



[PierArg]

really you should answer with a statement and not with a question:

should be a thickness to make sure that the "pack" (shaft and bearings) is firm. You should have another thickness on the other side of your design, where there should be the other bearing.
which together is what you posted?

obviously do not take for good what I wrote and wait for what others say.



[marcolino91]

...pierarg I did as you said...
I got the ornitorin reducer. I changed it, and I inserted the bearing symbols... Is that right?



[PierArg]

That's right!
then that black "roba" is as I say, they are of the thicknesses that serve to correct any games during the assembly of the "shaft/cuscinet parcel".



[antoniopio]

Okay now? I tried to try to make myself

How do you draw the item number 12, the body? I would need a technical design with its arbitrary choice quotations, tolerances, roughness etc.



[MassiVonWeizen]

How do you draw the item number 12, the body? I would need a technical design with its arbitrary choice quotations, tolerances, roughness etc.

Congratulations. not even a good morning, not even a thank you, the request to do the task instead of you, a number put to ca**or because the body is not the 12..... changes register! ! ! !



[meccanicamg]

How do you draw the item number 12, the body? I would need a technical design with its arbitrary choice quotations, tolerances, roughness etc.

who is element 12?
Did you read the rules? Did you show up? you wrote me in private but as I answered you, you have to bring a full quoted example and we comment and we correct you and explain if you don't understand some things.
if you're in engineering....it assumes something design you know. Of course there are those who come from the classic or the scientific who do not know how to draw because they did not make mechanical expert.... but a good book, dispenses, follow lessons and ask the professor are things that help to learn matter.
If you fall on something like this... maybe it's the case that you prepare for the next call.

choose a piece, briefly describe the contextualization of what it is and where it goes.
then represents it in its views/minimum sections useful for understanding.
put all the quotas for manufacture and dimensional tolerances where they serve (cave seeger, bearing locations, sealing locations, housing something) and shape tolerances to ensure functionality.
the signs of roughness according to the functions of the object....rectified turned milled. - I'm sorry. . .
You have to put your head and good will on it.



[meccanicamg]

component 12...qui



[meccanicamg]

component 12 qui.
