pattern table with relationships

  • Thread starter Thread starter MBT
  • Start date Start date

MBT

Guest
Hello everyone
excuse me if I write in an "typical" area and if I ask a question that probably has already been made several times
Suppose you have a feature and want to make a table series
assume that one of the dimensions of the table is guided by a report.
How do you behave?
For example, I would like the table to be something like that.
[table="width: 500, class: grid, align: center"][tr]
[td]idx[/td]
[td]d62[/td][/tr][tr]
[td]1[/td]
[td]20+d20[/td][/tr][tr]
[td]2[/td]
[td]20+d21[/td][/tr][tr]
[td]3[/td]
[td]20+d22[/td][/tr][tr]
[td]4[/td]
[td]20+d23[/td][/tr][/table]When I enter these reports, it makes me mistake.. .
Is there any shortness in the insertion of the "formula"? for example, quotes or other?
or is there any escape?

thanks to all

MBT said:
Hello everyone
excuse me if I write in an "typical" area and if I ask a question that probably has already been made several times
Suppose you have a feature and want to make a table series
assume that one of the dimensions of the table is guided by a report.
How do you behave?
For example, I would like the table to be something like that.
[table="width: 500, class: grid, align: center"][tr]
[td]idx[/td]
[td]d62[/td][/tr][tr]
[td]1[/td]
[td]20+d20[/td][/tr][tr]
[td]2[/td]
[td]20+d21[/td][/tr][tr]
[td]3[/td]
[td]20+d22[/td][/tr][tr]
[td]4[/td]
[td]20+d23[/td][/tr][/table]When I enter these reports, it makes me mistake.. .
Is there any shortness in the insertion of the "formula"? for example, quotes or other?
or is there any escape?

thanks to all
Click to expand...
should be more like this
idx d62(20)
1
41
3.
4.
but we miss the columns of the coordinates

ROAR said:
should be more like this
idx d62(20)
1
41
3.
4.
but we miss the columns of the coordinates
Click to expand...
Yes, there's still a column missing.
the fact is that d20, d21 etc are quotas of another feature.. and can change depending on cases
for that I would like to have a relationship

the table comes out for holes of various sizes:
above put dimx dimy dimdiameter of the first hole and then colored under xy coordinates and diameter of the other holes e.g.


d2(20) d3(10)
2 60 40 15
3 60 70 20

i explained well...

i already have a pattern table, existing and happily workingtab-01.webpmakes a set of a feature according to the values inserted in the table. and works nicely

however, i have another feature that is made by sketch and that presents the following oddstab-02.webpwhat i would like is to make that, if the odds of the sketch change, even the values of the pattern table change accordingly

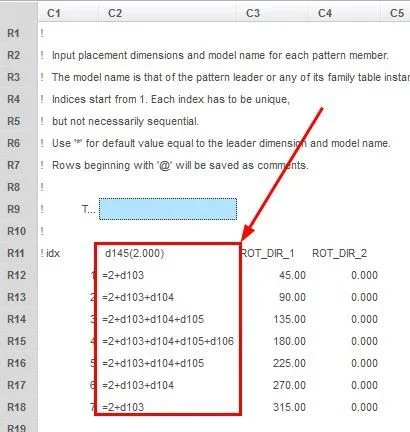

in practice, i want something like that.tab-03.webpbut if i insert this table, it tells me "invalid date in pattern table"
obviously or you can't do it or i'm wrong.. .

i think you need to look for another solution because i don't think it makes you use those calculations in the table there...
and if instead i created a table of excels where you write the formulas and import it with the results already? could it be a solution?

calacc said:
i think you need to look for another solution because i don't think it makes you use those calculations in the table there...
and if instead i created a table of excels where you write the formulas and import it with the results already? could it be a solution?
Click to expand...
but if i change the sketch... i have to re-pass for xl and update everything!
this thing here is the skeleton of a machined carpentry.
tomorrow, at finished work, i have to feed it to people who have two sinister hands and the neuron committed 100% in vital functions. less things touch, the better it is!

I must be honest... I never did. The idea I have is this... you have to see if it works or not:
  • sketch odds that change the cups as parameters: a=d109; b=d104; etc...
  • Export qs parameters into cells of a excel sheet by command analisi excel
  • always on excel do calculation with formulas
  • amounts the result as pattern table
I see it a little bit hot as a road, maybe there's a simpler solution with relationships

MBT said:
Hello everyone
excuse me if I write in an "typical" area and if I ask a question that probably has already been made several times
Suppose you have a feature and want to make a table series
assume that one of the dimensions of the table is guided by a report.
How do you behave?
For example, I would like the table to be something like that.
[table="width: 500, class: grid, align: center"][tr]
[td]idx[/td]
[td]d62[/td][/tr][tr]
[td]1[/td]
[td]20+d20[/td][/tr][tr]
[td]2[/td]
[td]20+d21[/td][/tr][tr]
[td]3[/td]
[td]20+d22[/td][/tr][tr]
[td]4[/td]
[td]20+d23[/td][/tr][/table]When I enter these reports, it makes me mistake.. .
Is there any shortness in the insertion of the "formula"? for example, quotes or other?
or is there any escape?

thanks to all
Click to expand...
What are you doing with me?
Look, it's hard to use... isn't it better if you give yourself to something more modern?
I'm done tonight... tomorrow in the afternoon I look at you and give you the solution. :-)

MBT said:
But I'm asking myself... .


That's what the doctor suggested.
He told me "try to take some remedy of those of once.. Maybe without black edges... "
And so here I am!

creo 2.0 release m130
Click to expand...
You guys make me laugh. we hope that max has the ace in the sleeve, definitely has experience in this kind of work!

Max, unfortunately I cannot
I have so many anti-fuga-di-dati controls in the office that if I send an email with an attachment like that I open a trapdoor under the chair!

Sorry.
