precise flash point fit

  • Thread starter Thread starter Capo_bastone
  • Start date Start date

Capo_bastone

Guest
Good morning, I have a problem with solid edge:

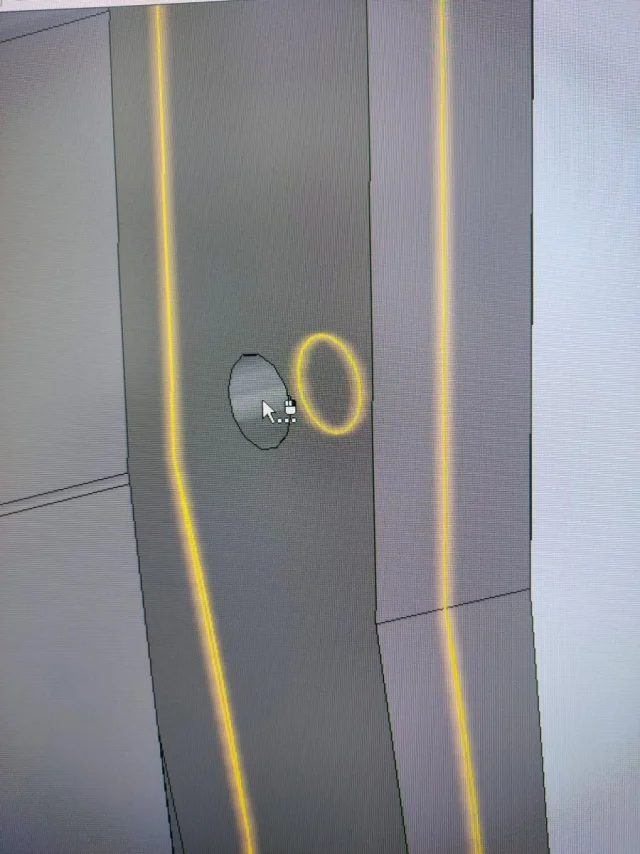

when I use the command assemble flashfit and move on a face or a board to select the coupling, solid edge suggests a set of planes, faces that are distant from the mouse pointer and despite the close zoom I always have to use quickpick to find the selection that interests me. Is there a way to increase the accuracy of the mouse pointer on individual faces? (I attach example I would like to insert cylindrical coupling but I suggest the planar)

may be the display > sharpness setting
if you raise the number but it all slows down, you have to find the right compromise for you (or better, for your car)

Hi.
