Hello, everyone. I'm new to the forum and I hope you can help me with this little problem.
I am creating a beam system starting from a surface pattern in a conceptual mass, I list below the steps and my problem:
1-cree a mass, select the surface that interests me and check the reason (see Annex "1-motive surface")
2-I open the family "multiple metric model based on reason" and create the component I want to assign them (see attachment "2-component of reason")
3-load the component within the project and insert it on my surface (see attachment "3-component on surface").
the problem is as follows:

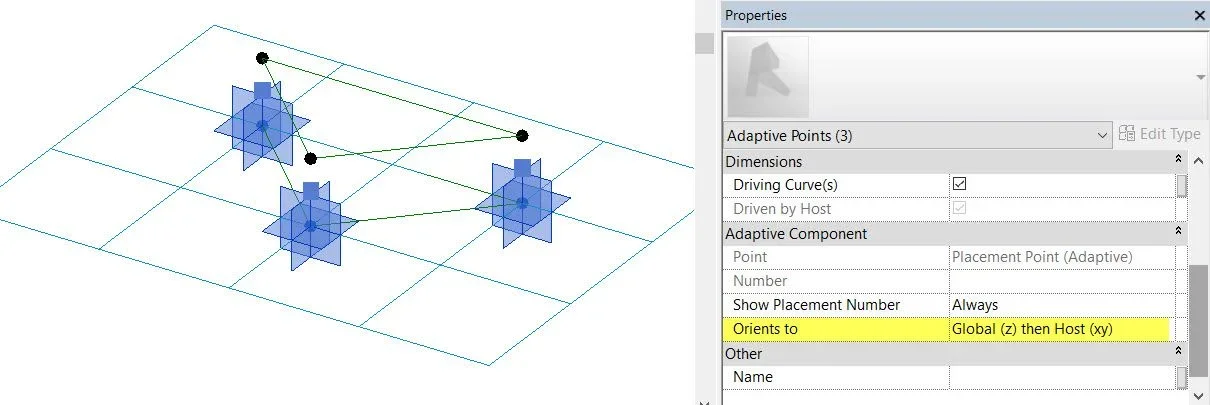

the reason I insert is perpendicular to the surface of the plane, but I would need it to be inserted following the z axis but I can not find any parameter to attribute them to tell them to follow the z axis instead of the normal on the plane. below I entered a sketch of how I would need (see attachment "4-problem")
Can you tell me how I can solve the problem? Thank you all.
I am creating a beam system starting from a surface pattern in a conceptual mass, I list below the steps and my problem:
1-cree a mass, select the surface that interests me and check the reason (see Annex "1-motive surface")
2-I open the family "multiple metric model based on reason" and create the component I want to assign them (see attachment "2-component of reason")
3-load the component within the project and insert it on my surface (see attachment "3-component on surface").
the problem is as follows:
the reason I insert is perpendicular to the surface of the plane, but I would need it to be inserted following the z axis but I can not find any parameter to attribute them to tell them to follow the z axis instead of the normal on the plane. below I entered a sketch of how I would need (see attachment "4-problem")
Can you tell me how I can solve the problem? Thank you all.
