Good morning to all.. lately I happen that by placing a quota within the extension lines the value ends outside the quota and very distant. . And if they put it outside, I'll stay where I put it. .
Can someone help me solve this problem?
solidworks 2020 sp1

Thank you in advance

sent by my bnd-l21 using tapatalk



[MassiVonWeizen]

happens if it is a trimmed or interrupted view



[FIGOR71]

happens if it is a trimmed or interrupted view

Thanks for the answer. .
the view, however, is neither trimmed nor interrupted. . .
I happen all over the table.. but only in this...in others it does not happen to me ..for that I think I have unintentionally changed some setting. . .



sent by my bnd-l21 using tapatalk



[MassiVonWeizen]

also making the view? or doing another equal section?
only with that quota?



[FIGOR71]

also making the view? or doing another equal section?
only with that quota?

with all the odds of that table. .
with the other tables does not happen.. .


sent by my bnd-l21 using tapatalk



[meccanicamg]

It is not that you have a hidden component, a sketch with greater geometry than the pieces you see....so so?



[FIGOR71]

It is not that you have a hidden component, a sketch with greater geometry than the pieces you see....so so?

No, I don't. .

sent by my bnd-l21 using tapatalk



[MassiVonWeizen]

have you activated the centering of the quota?
I do not find options on this, but if it happens only on this table you can exclude system options.
to understand if it is an option of the document, which is strange if the template is always the same, you have to open the incriminated design plus one working on two solid sessions, view the options of the document and then with ctrl+tab switch from one session to another and compare the various tabs.



[mohammed.majdouli]

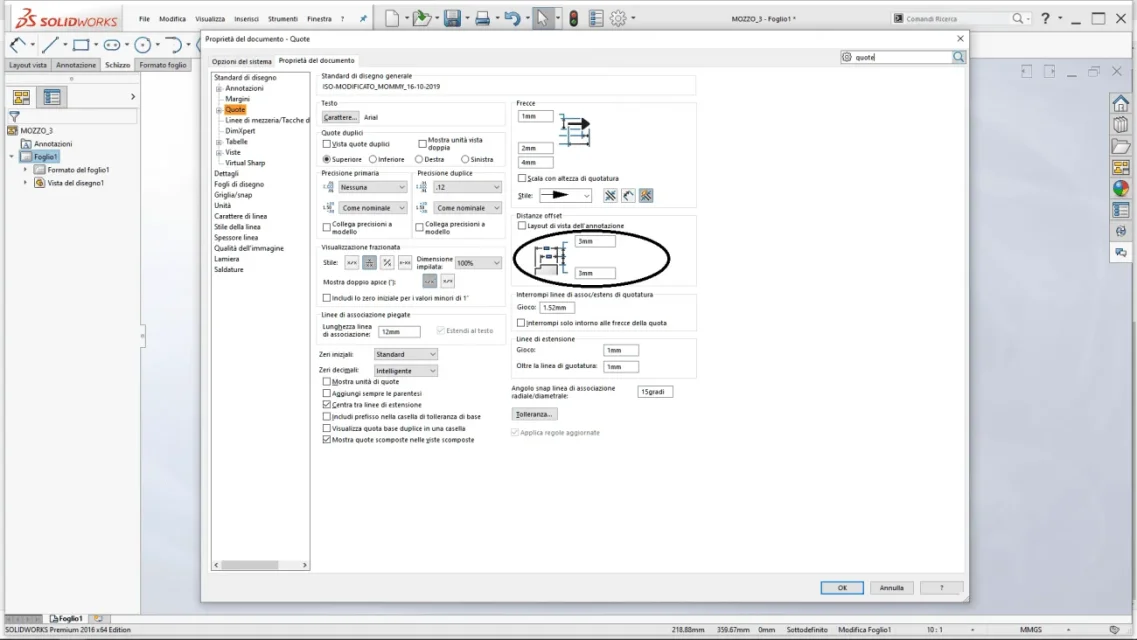

check the following settings from you a me size with 3 mm x 3 mm I look good
Then you see



[FIGOR71]

happens if it is a trimmed or interrupted view

I apologize to all...
This morning I noticed that it was a narrow view... I was convinced that it was a detail view.

next time I'll be more careful. .

thanks to all

sent by my bnd-l21 using tapatalk



[MassiVonWeizen]

check the following settings from you a me size with 3 mm x 3 mm I look good
Then you see

that approach has nothing to do with the problem raised by figor
