profile on a sloped revolution surface

[panormus]

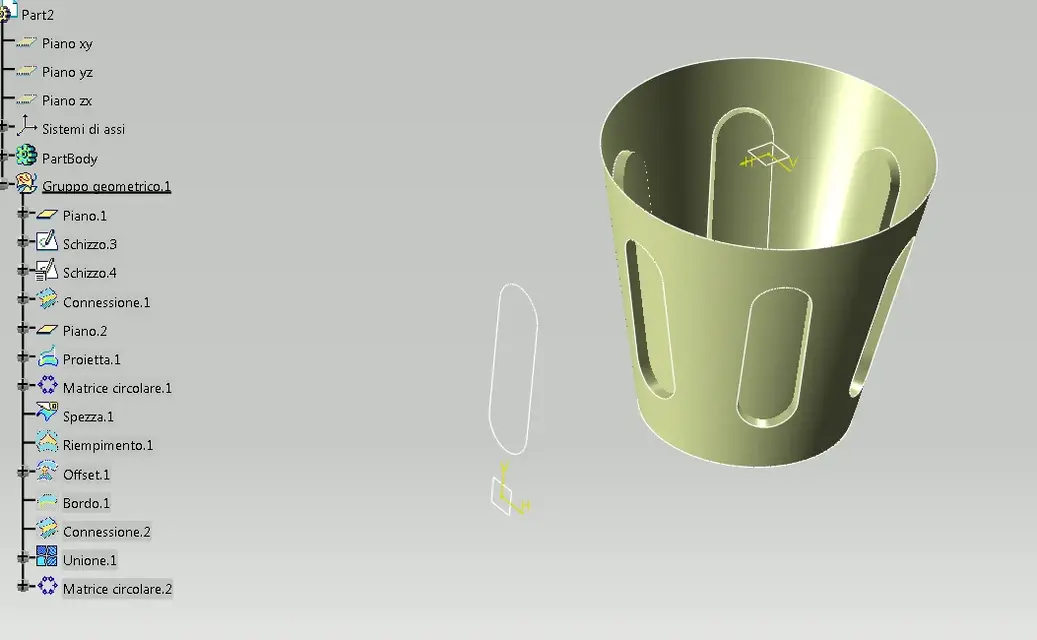

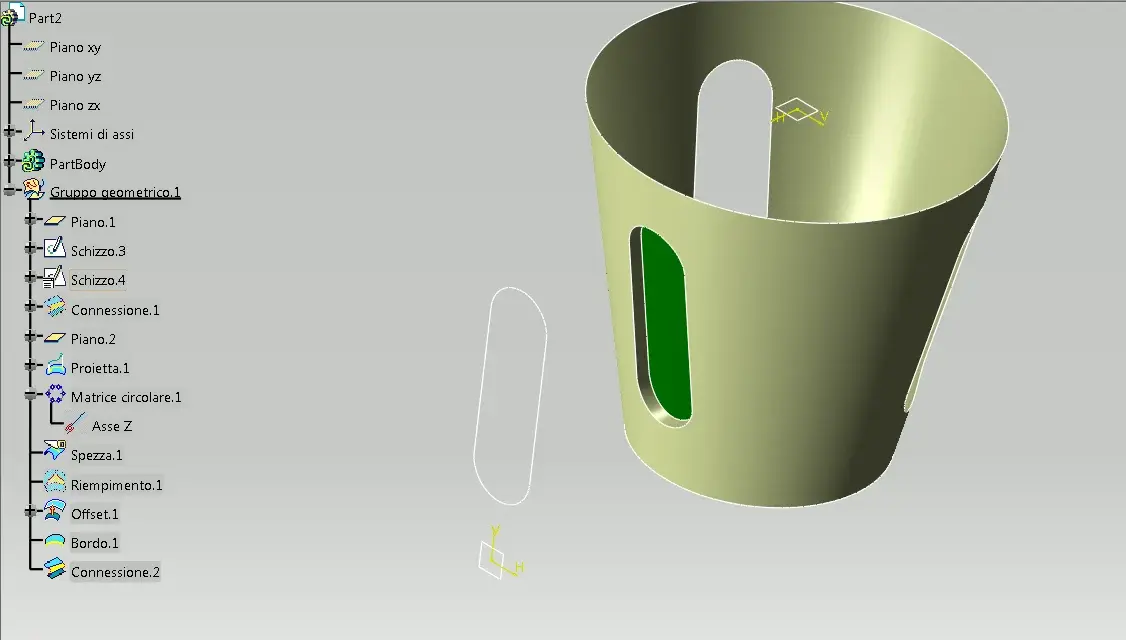

if the geometry to be realized is not complex you can do so:

project any sketch on the surface,
cut the same with the projection,
create a cut surface offset (e.g. a square),

and you will have a perforated bin and a sketch shape offset,

then create a connection surface between the offset sup and the perforated surface.
I used the same technique for the auditory r8 I designed.

clearly then with the beauty of the parametric limit you to change the parameters of the matrix.

greetings



[panormus]

I forgot: to have the slightest deformation of the projection it is necessary to draw the sketch on a plane having the same inclination of the surface and tangent the same; also narrower is the smaller sketch will be projection deformation.

if you have to do only horizontal and vertical lines you can use the iso curves directly on the surface.

as the mocca says,
we waved
