hi my name is luca and I do the metalmechanical, I don't know if you can help me, however in any case I put my case: for my personal needs and my comfort, I need to build a lift frame to portal or to stand with sliding chain hoist, according to the calculations I have deducted through the tables of the profiles, I chose empirically for the side mounts a cross-section pier ipn 120 x 110, and for the cross-door horizontal hoist an ipn 180. the structure must have the following requirements height under hook 3 meters, width 3 meters , side width base 1,50 meters flow 2 tons. I realize that lifting systems are related to current safety regulations, but this structure will be used privately only for our personal needs. you can help me develop this project with the measures and its drawing maximum thanks hello



[odisseo 18]

draft of the project to be implemented



[gil]

What exactly did you need?
ipn profile series is hardly recoverable on the market.
I suggest hea100 for the climbers and ipe120 for the crossing. or to optimize gl iscarti do everything hea120. eye to how you make joints.



[odisseo 18]

first of all thank you for your time and your interest, from my empirical calculations through tables I have established the following: I buy 2 beams, an ipe 180 cut in half and with a piece of 3 meters I make the traverse sliding trolley, with a piece of 3 meters that remains the divide at half 1.5 meters and I echo the 2 beams of the base to which to place 4 wheels high flow from 500kg falls 1, in the same wall the vertical struts that will support the top of the beam, for these I opted 2 options or a frame to 120 for a question of safety I would like to perform a mix or to the central mount I add 2 side saettones with a contour box 60x 80 mm and then I will have a central mount and 2 oblique legs that join the top of the trave and the base traverse in an opposite way to the rotating wheel8 I have to establish if weld directly or create of the supports in sheet to create a hinge



[odisseo 18]

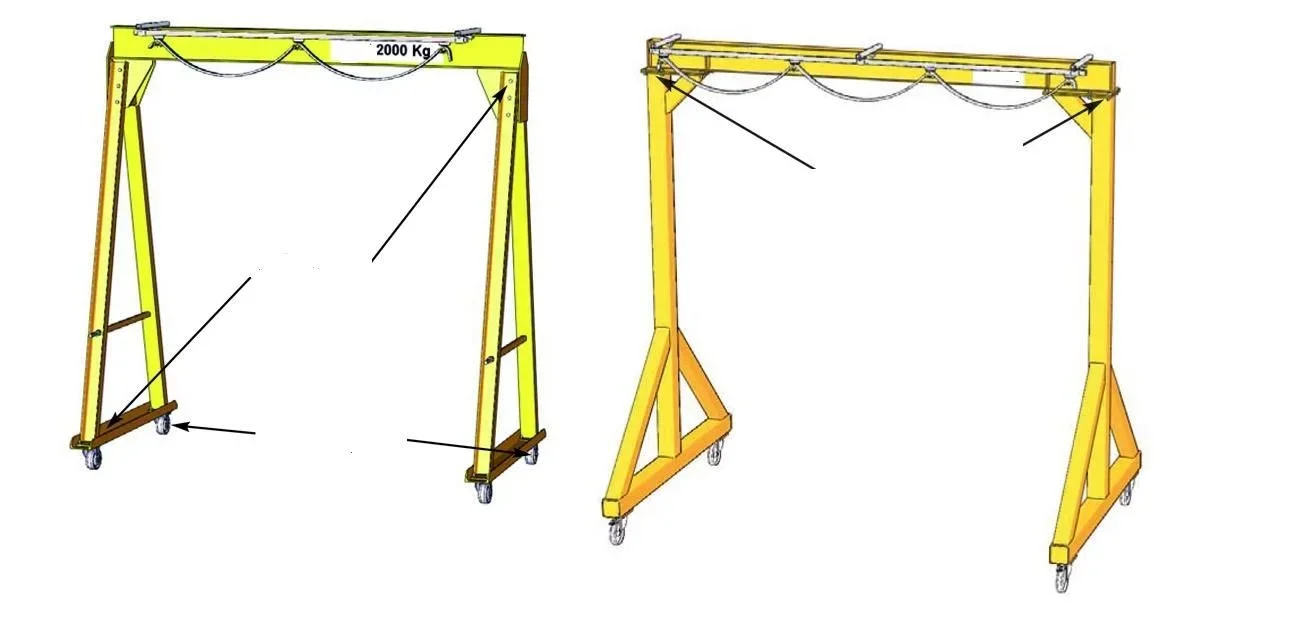

I send you sketches of the two cranes that sent me the quote



[odisseo 18]

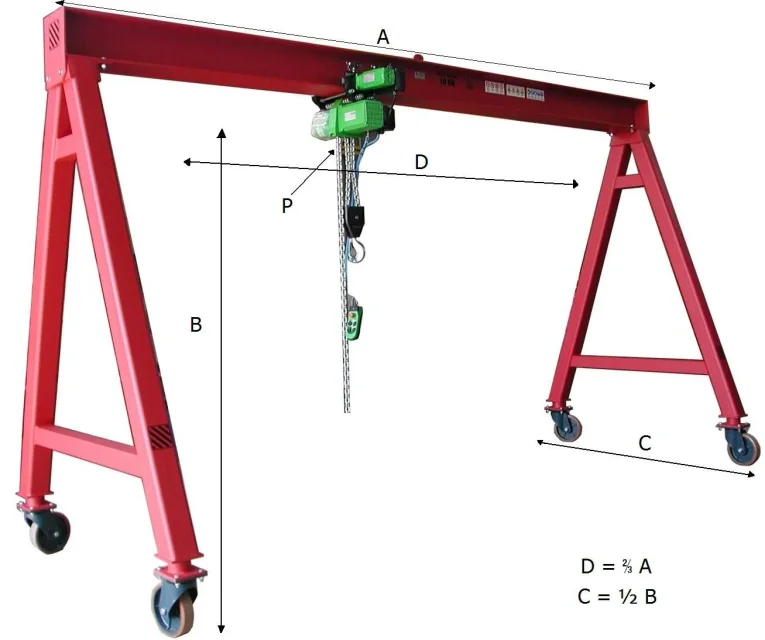

for greater clarity I send reference diagram size crane that I used for the design, I wait info clarifications corrections and any criticisms regarding the structure that I have to build , I have to realize also the hardening tissues as I have to do to proportion them and put them in the right place in the structural knots in a correct way to make monolithic and robust the structure? waiting for your feedback I send greetings



[gil]

attach a drawing, from the simple description of the post #4 it is difficult to make a precise idea. then you posted 4 different drawings which is what you will accomplish? without a complete and precise design on which to reason I cannot be of help.



[odisseo 18]

I would like to make a trip between the two wheels and the base of the three pieces,



[gil]

Indicatively it can go well. If you need a more precise analysis it is better to attach a drawing.



[odisseo 18]

Indicatively it can go well. If you need a more precise analysis it is better to attach a drawing.

thanks to all of you for your words and speeches if you have nothing to add I greet you and thank you for your collaboration:finger:



[gil]

I didn't really help you. I can do very little evaluations on a stunt of which there is no design, but only descriptions.
Anyway, good luck.



[odisseo 18]

I am actually allowed to disturb you because I should buy the material and for practical reasons I will cut it from the supplier company and therefore I have listed the materials that I thought necessary to realize the structure, the doubts I have in the saettes of the convents and in the forts of rigidity , I believe that to realize of the handkerchiefs in steel 250x 10 mm wounded, to connect the sacks that they also act this and all I thank you in advance for the collaboration if you have criticism and errors to underline me please do not hesitate if you think it is too heavy or not robust if it is conceived badly etc. technicians are you please correct me, I thank you again and I greet you to the next
- - - updated - - - -I am actually allowed to disturb you because I should buy the material and for practical reasons I will cut it from the supplier company and therefore I have listed the materials that I thought necessary to realize the structure, the doubts I have in the saettes of the convents and in the forts of rigidity , I believe that to realize of the handkerchiefs in steel 250x 10 mm wounded, to connect the sacks that they also act this and all I thank you in advance for the collaboration if you have criticism and errors to underline me please do not hesitate if you think it is too heavy or not robust if it is conceived badly etc. technicians are you please correct me, I thank you again and I greet you to the next



[odisseo 18]

how do I size coupling plate according to standard diameter bolts how many bolts I put?



[odisseo 18]

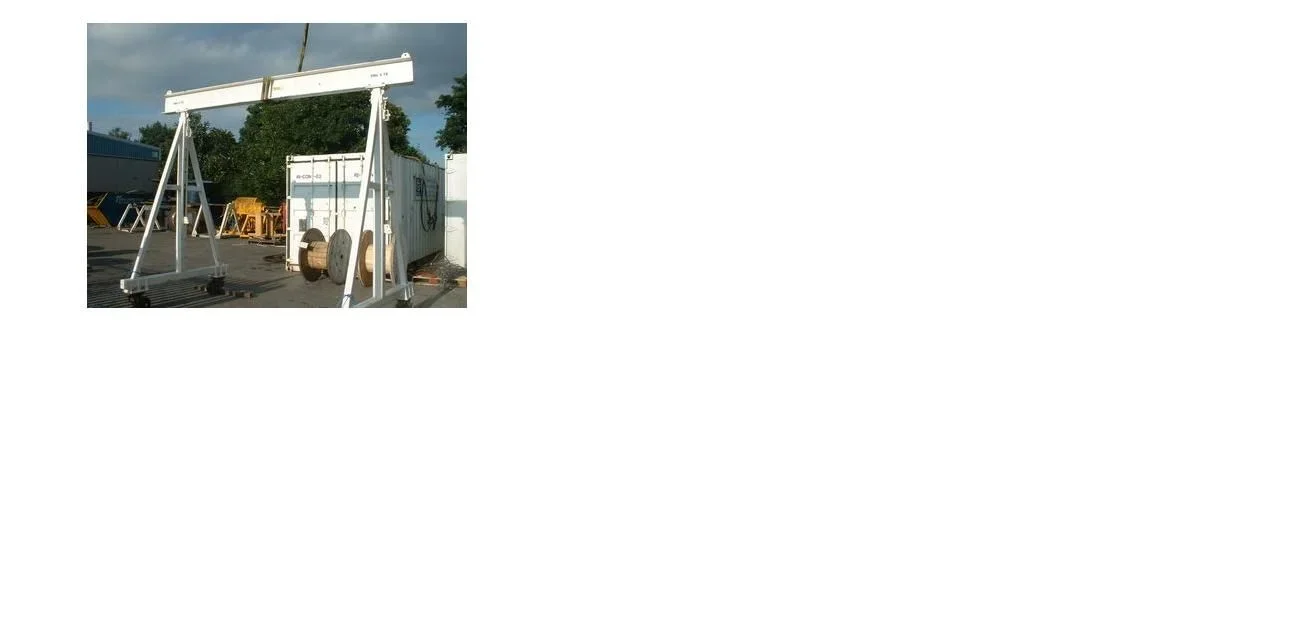

What do you think of these structures already made I could take inspiration?
