project data and board

[Quoque69]

hello to all
I would like to know how to insert the data contained in the custom properties of a model in a custom table in the drawing board
thanks to all in advance

congratulations to all you have solved several problems



[Matteo Cappelli dis.CAD]

Hi.

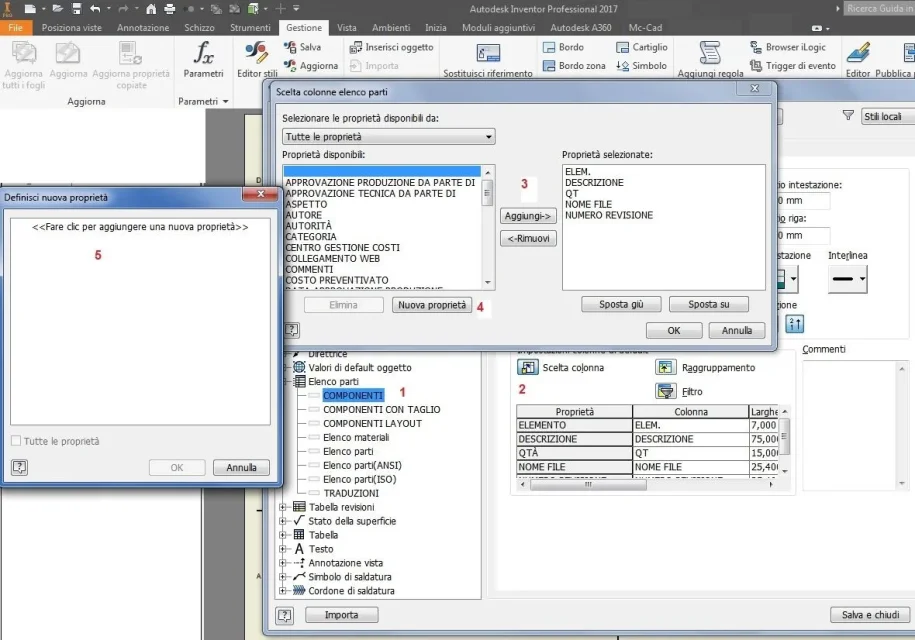

create a new 2d board where you insert a 3d part that contains the custom iproperties you want to load
from the management menu => style editor, select list components and duplicate list parts giving your name to the table
via the column choice button, you can add a "standard" iproperties and with "new property", one or more customized
