quotas on tubing in assonometric view

[robertobacci]

Hi I would like to quote on an assonometric view the inter-axis distances of a pipe performed with the piping module. I have created for every point that I want to quote an axis (bisettrice) but by applying the quota at the apexes or selecting them nothing happens. How do I:redface: ?


greetings
roberto



[arzigogolo]

Hi I would like to quote on an assonometric view the inter-axis distances of a pipe performed with the piping module. I have created for every point that I want to quote an axis (bisettrice) but by applying the quota at the apexes or selecting them nothing happens. How do I:redface: ?


greetings
roberto

try to do this:
1- create the views of your piping in the table.
2- expand Pipe and pipe pipelines, right click on "conducting 02" or any other name you gave him, then select "include route axis lines".

At this point, the tube axis lines should appear.
activate the "quota" command, select two axes any and he puts the quota.

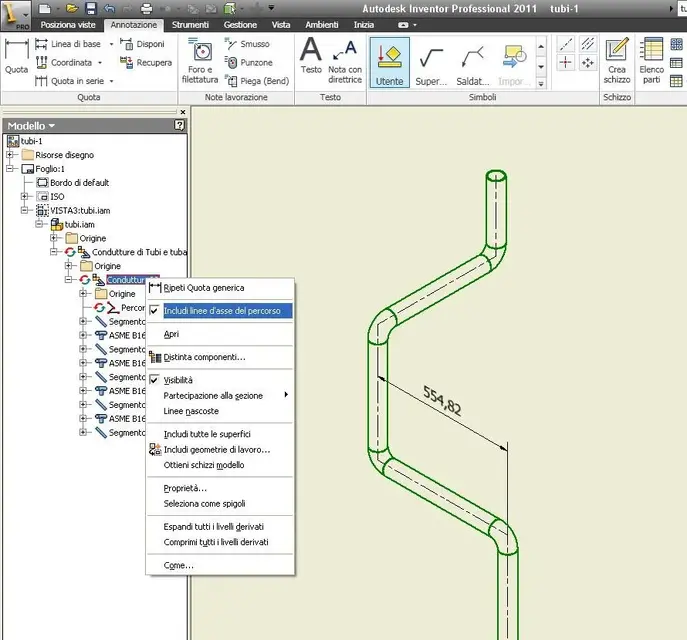

Anyway, look at the picture I posted to see if it's clear.

If you can't ask.:smile:

Bye.
Light
