reactions to the constraints that do not return to me. . .

[Ing.Vedder]

Hello everyone,

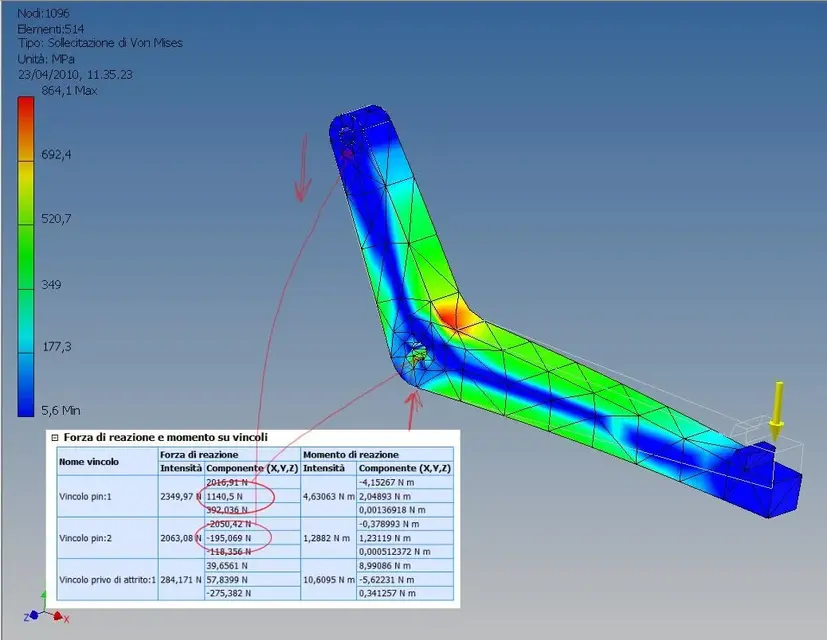

I was doing some tests with a solicited lever just as you see in the photo and I was quite satisfied with the result until I fell my eye on the constraints (see first photo). .precisely the reaction in the y direction, do not seem to you the directions of reactions in y invertite regarding the reality of things?

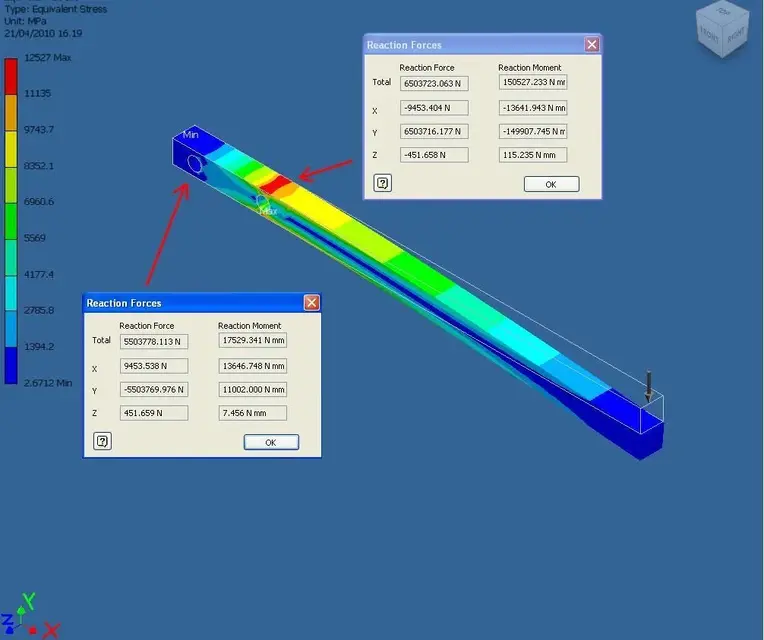

I did a flashing test (see second photo) and in fact the reactions in y have the signs I expect. .

Can someone give me an opinion?

thanks to all

e.v.



[diegus]

hi ing., actually the first example seems to have inverted binding reactions. I did a test and it seems to me that my results are accurate. I attach my file (inventor 2010) take a look.



[Ing.Vedder]

I turned your file and actually the reactions to the constraints are right!
I'll put mine tomorrow and see if you're wrong.

Thank you very much and excuse the delay in the answer, periodaccio.

e.v.
