rotary maze seals - non-contact seal

[meccanicamg]

Good morning, everyone.
I am interested in deepening especially with those who make use of it, of how the labyrinth channels on the flanges, axial and radial.
I am not interested in trade products already made.
very often, on machines subject to dust, the flange turned into the house.
I have already found this publication in 2017 but it is not exhaustive at all.



[cacciatorino]

from what I remember from the times of the university depends a lot if you have to limit the input of contaminants or limit the loss of fluid pressure to the outside environment.



[meccanicamg]

from what I remember from the times of the university depends a lot if you have to limit the input of contaminants or limit the loss of fluid pressure to the outside environment.

Surely if I have to limit the outflow of fluid I will have small games. If I have to keep the contaminants out, I will have more game and work the centrifugal force.
But I'm hunting for something more precise and spendable.



[meccanicamg]

from the niemann volume 1 of 3 we have this beautiful panoramic but nothing more. we have some variants also easily intuitive.



[cacciatorino]

remember, from the examination of fluid machines, that the second type (from left) is used on the trees of steam turbines: the " comb" seal causes the fluid to be continuously subject to change of energy (it must always exchange pressure energy with kinetic energy at each step in the thin section). This results in a huge load loss ending to minimize steam flow.



[TETRASTORE]

When I dedicated myself to the design of the gearboxes, the labyrinth seals were required in some particular applications to prevent abrasive dust from getting in touch with the sealing rings by damaging them. they built flanges with channels arranged as in the second scheme of your first image; the distance between the rotor flange and the stator was generally 0.5 mm considering a finish obtained from an accurate turning. In my case, of course, the fat (very dense) did not come into contact with the bearing lubricant that was already lubricated with oil, but it only served to collect the impurities that incorporated during the operation and which were expelled through the periodic regreasing planned.
at analytical level I can indicate the following references of which some also examine the sealing conditions of a fluid under pressure:how labyrinth seals control contaminant ingressionextract from: materials and mechanical design, volume 1, chapter 33labyrinth seal leakage analysisdesign improuvement of a pump wear ring labyrinth seal



[MFT]

Good morning, everyone.
I am interested in deepening especially with those who make use of it, of how the labyrinth channels on the flanges, axial and radial.
I am not interested in trade products already made.
very often, on machines subject to dust, the flange turned into the house.
View attachment 69538I have already found this publication in 2017 but it is not exhaustive at all.

I remember that there was, but we have to look for it, a catalog of the timken where we talked about the labyrinth seals for the protection of the bearings.
you have to pass the material you find here by filtering what you need:

https://www.timken.com/resources/?r...ish&language[]=italian&type[]=technical-paper



[meccanicamg]

How beautiful material. You got to get me to kick everything out. I saw that in one of the tetrator documents that a fortran program to size.
for now I thank you and if you have more to share I am happy.



[meccanicamg]

I remember that there was, but we have to look for it, a catalog of the timken where we talked about the labyrinth seals for the protection of the bearings.
you have to pass the material you find here by filtering what you need:

https://www.timken.com/resources/?r...ish&language[]=italian&type[]=technical-paper

timken, skf and ina use the taconite series, as a non-contact gasket made to labyrinth but use it on cast iron bearing supports. therefore there are no indications on measures, spaces etc.



[Chris_BRB]

Good evening to all,

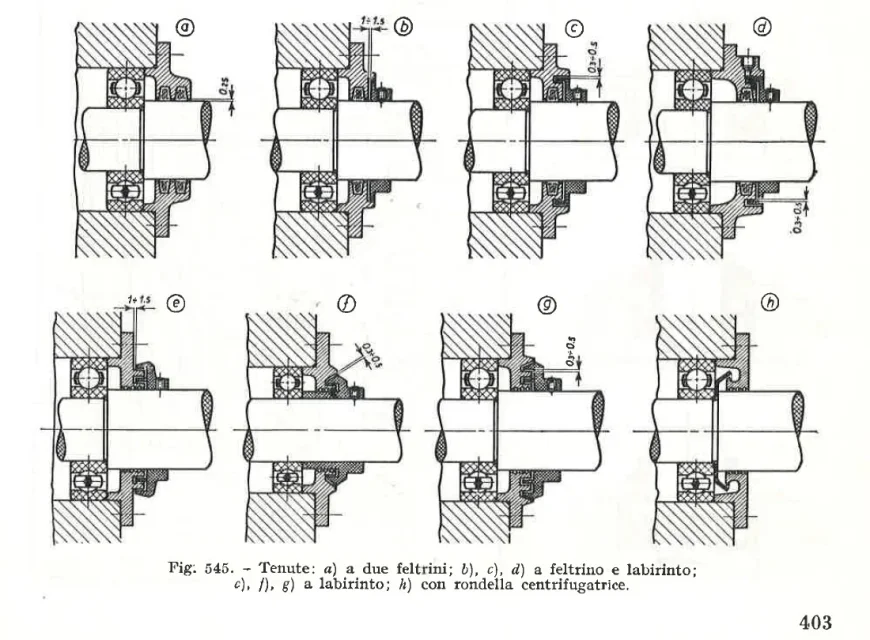

I found the image attached to the drawing of machines



[meccanicamg]

Good evening to all,
I found the image attached to the drawing of machines

thanks is already an extra reference and you see that they recommend a game of 0.3/0,5mm. certainly we do not know about what diameters but you think up to 200mm of seal about.
