sample of an offset section.

[Menna_88]

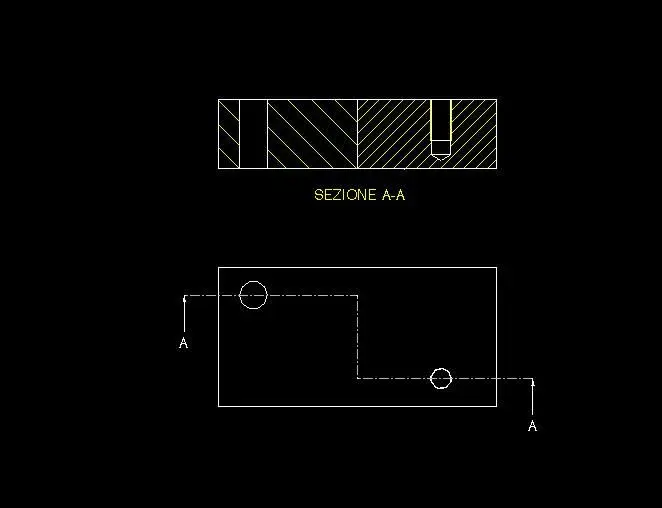

Hello, everyone. My problem is neither to do the offset section, nor to get it back on the table. the crucial point that I can't solve is the fact of staggering the sampling of the same object that has the section in two different planes because prescribed by drawing rule, also the jump line of the plan is displayed thick when it should be fine. Thank you for your help.



[dema]

Forget the rules... alive serene



[zimmy]

Let's forget the rules... today the design is very different from what was done a few years ago!
For example, do you exclude ribs from sections?
but said that what you say... you could do it!
However, it is a trick:



[Menna_88]

Hello, everyone.
Thanks for the answers!
As for the question of zimmy on the ribs, lately I haven't happened with creo though, although I wouldn't cross them, with creo it would become a serious problem even if with section "x area" you might succeed.
but I will follow the advice of dema and I will insert only the lines drawn vertical point that delimite the change of plan and I will live serene because the total that I am drawing is really complicated. However, with these new programmes, it is more time to understand how to do things and solve problems/things not provided by programmers than anything else. thanks again and good continuation!



[Menna_88]

Let's forget the rules... today the design is very different from what was done a few years ago!
For example, do you exclude ribs from sections?
but said that what you say... you could do it!
but it is a trick

hi zimmy is not that you would explain to me the trick that maybe can come back useful for other applications! Thank you.



[mauro85v]

Excuse me, did anyone have any indications about this "truck"? because I'm not going out with the question of staggered sampling and in the office everyone asks me loudly!
Thank you.



[freexf]

I don't think there's a set for that.
