section with joint surfaces

[gtsolid]

Bye to all,
in an assembly I am doing a section but I know that everything seems "fuso", as if the bodies were not distinct.Is it possible to handle this?



[MassiVonWeizen]

Why not attach the file?
how do you understand how the half-image model is made?



[gtsolid]

here they are.

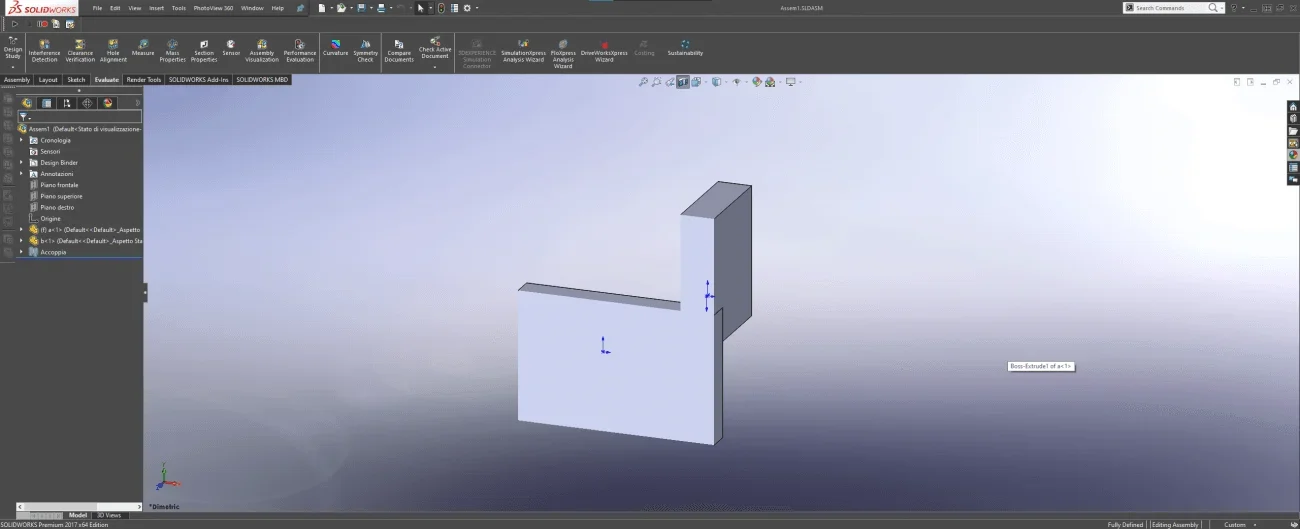

image with problem and starting p&g



[MassiVonWeizen]

that do it in the preview is normal, but once the command is confirmed the edges are also displayed.
when you confirm the edges you see?



[gtsolid]

Yes, I had already confirmed



[MassiVonWeizen]

Do you do it only with axioms or even with multibody parts?



[gtsolid]

also with multibody



[MassiVonWeizen]

togli la spunta a graphic-only section



[gtsolid]

Thank you. to think that I checked that the check was present, not that it was to be removed
