sheet metal

[html26]

Bye to all,
I'm freaking out with a client about developing a sheet.
attached an iges file...it requires tearing edges as from images without adding folds to living edges.View attachment tek.zipThanks for any idea.



[maxopus]

You're freaking out why, I don't see any problems.

Have you ever used sheet metal functions? Just convert and tear the edges.
Moreover you are using imperial measuring units, the thickness is 25.4 mm ....



[html26]

hi maxopus,
the file is an igs and therefore the unit does not matter...riesco to convert the sheet part only if I add the folds to the perpendicular edges to those highlighted in the image previously. .
I am impazendo to convert this sheet without bending those edges..is it possible?



[maxopus]

What version do you use?



[Eritro]

If it's just a box as you see, you better redesign it.



[Eritro]

maxopus
Is there a t3 version that converts igs into solid?



[html26]

no matter the proe or creo version.
redesigned by sheet does not allow to obtain the desired gemteria. .



[maxopus]

no matter the proe or creo version.
redesigned by sheet does not allow to obtain the desired gemteria. .

I downloaded your file and converted it to sheet without problems.
no matter the unit of measurement, no matter the version of the program.
If you better explain what you care... maybe we can help you, otherwise you can always call the customer care of ptc.



[maxopus]

maxopus
Is there a t3 version that converts igs into solid?

Is this a question about think 3?
You should put it in the specific section.



[html26]

the problem is not in converting sheet but in doing the unbend.

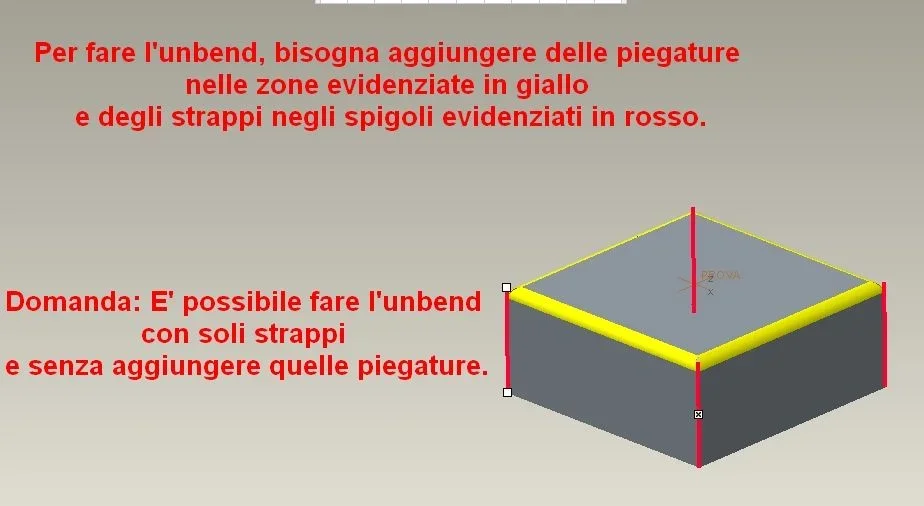

see pictures Thank you and good Easter.



[maxopus]

the problem is not in converting sheet but in doing the unbend.
see pictures View attachment 32779Thank you and good Easter.

It's exactly what you do, applying only the four tears.



[html26]

I'm doing well? or is it possible to make the unbend with only tears?



[maxopus]

I'm doing well? or is it possible to make the unbend with only tears?

with creo you do with only tears, if I don't remember badly in pro/e you have to add the folds.



[html26]

hi maxoupus,
I can't..creating only straps, the feature fails.
I'm gonna make the folds that I don't want.
Can you help me?



[maxopus]

hi maxoupus,
I can't..creating only straps, the feature fails.
I'm gonna make the folds that I don't want.
Can you help me?

As I wrote you at first, you have to tell me the version used.
the method has changed in the most recent versions.



[html26]

I believe 2
grazie



[maxopus]

I believe 2
grazie

You shouldn't have any problem.
with creo 2 I performed the 4 tears and the flat series is developed without problems.



[html26]

You shouldn't have any problem.
with creo 2 I performed the 4 tears and the flat series is developed without problems.

I can't do it with those tears. See the footage and tell me if it's the same thing.



[maxopus]

I can't do it with those tears. See the footage and tell me if it's the same thing.

look at the attached footage, you have to use the shell function to get the desired result from you.



[html26]

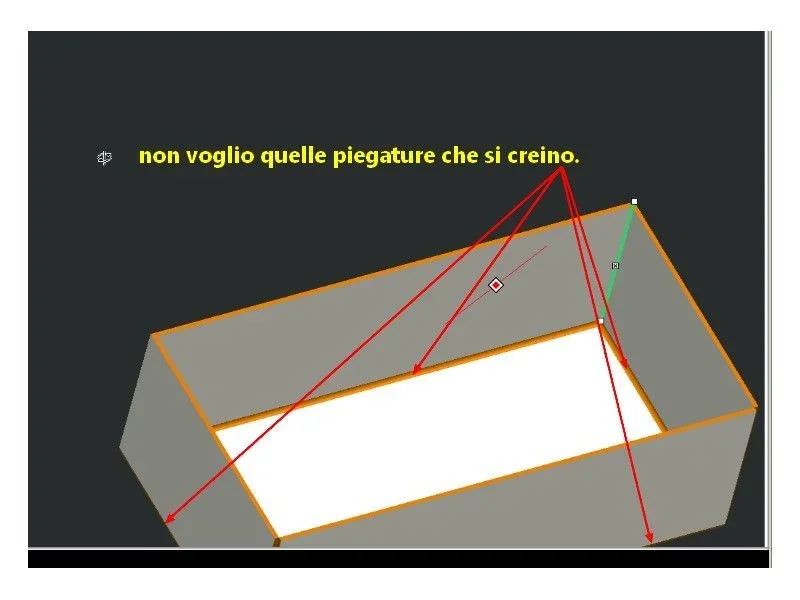

as I have specified previously, by force bends are created as from image.
I want to make the tears, but it denies those folds, and then I can make the unbend.
