simulation fem inventor

[morisss89]

Good evening,

I introduce myself briefly as it is the first time I write on the forum:
my name is alessandro, civil engineer and temporary work at an engineering study (I take care of piping and stress analysis).

I started using inventor and modeling the flange was asked by the client to verify it through a fem analysis following an American law;
the problem is that this legislation is based on the calculation of max shear stress (trail stress) and inventor only returns to me the stress values of von mises (as well as the first and third main stress);

Is it possible to somehow achieve the performance of the strss valours according to tresca? ? ?

you could do customizing the results of the software but with the inventor I have in the studio I can not (I have inventor design suite 2013 and inventor simulation 2011, but with neither software I can customize the results).

thanks in advance for the help.



[Filo]

For what I know, you can't.

Hi.



[PLOTTER83]

Good evening,
is it possible to carry out a static analysis to the finite elements with autodesk inventor suite 2011?
if yes, what is the section of the program to access it?

Thank you.



[TECNOMODEL]

I do not know 2011, simulation is in environments-analysis stress



[PLOTTER83]

thanks for the technomodel answer,

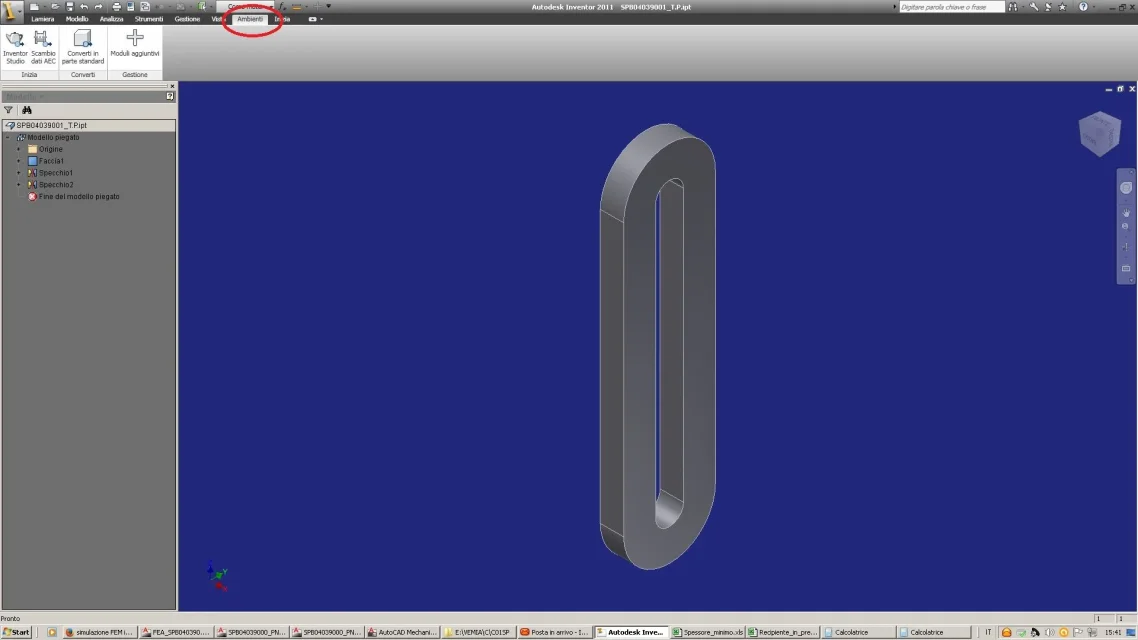

with the suite version there is no button you say, I attach a screen print.



[PLOTTER83]

Do you have to add some add-ins?



[TECNOMODEL]

I don't know, I work with inventor since the 2014 release.
may be that in 2011 it was not understood and paid separately.
or the type of license you have does not include the fem.

You have to hear who I've been working on inventor for a long time.



[Andrea Bellachioma]

@plotter, go on additional modules and see if you can load "simulation: stress analysis".



[pagnotz]

can depend on what kind of inventor you have, the simulation module is included in the professional version, if you have the basic version "inventor" (and looking at the title in the top bar in the image you attached, I think it is your case), are not included fem, dynamic analysis or the module for cables and pipes.



[Zac69]

can depend on what kind of inventor you have, the simulation module is included in the professional version, if you have the basic version "inventor" (and looking at the title in the top bar in the image you attached, I think it is your case), are not included fem, dynamic analysis or the module for cables and pipes.

That's right.
In addition, for those interested, a new software called simulation came out and perhaps does what he asked at the beginning moris. try asking your dealer.



[PLOTTER83]

Thank you, but it's not there.

@plotter, go on additional modules and see if you can load "simulation: stress analysis".

- - - updated - - - -Yes, I confirm. the version of inventor suite does not even have static analysis of single pieces.

Thank you.

can depend on what kind of inventor you have, the simulation module is included in the professional version, if you have the basic version "inventor" (and looking at the title in the top bar in the image you attached, I think it is your case), are not included fem, dynamic analysis or the module for cables and pipes.
