stampa xref deformata

[BruPisa]

Good morning to all,

I create a new discussion because I didn't find any problems like mine.
if you mold a pdf the lines contained in the file are good, but the linked lines (xref) are segmented and deformed. for the rest I can control colors and line thicknesses of the xref, but already in print preview I deform the lines of the xref.

Any advice?

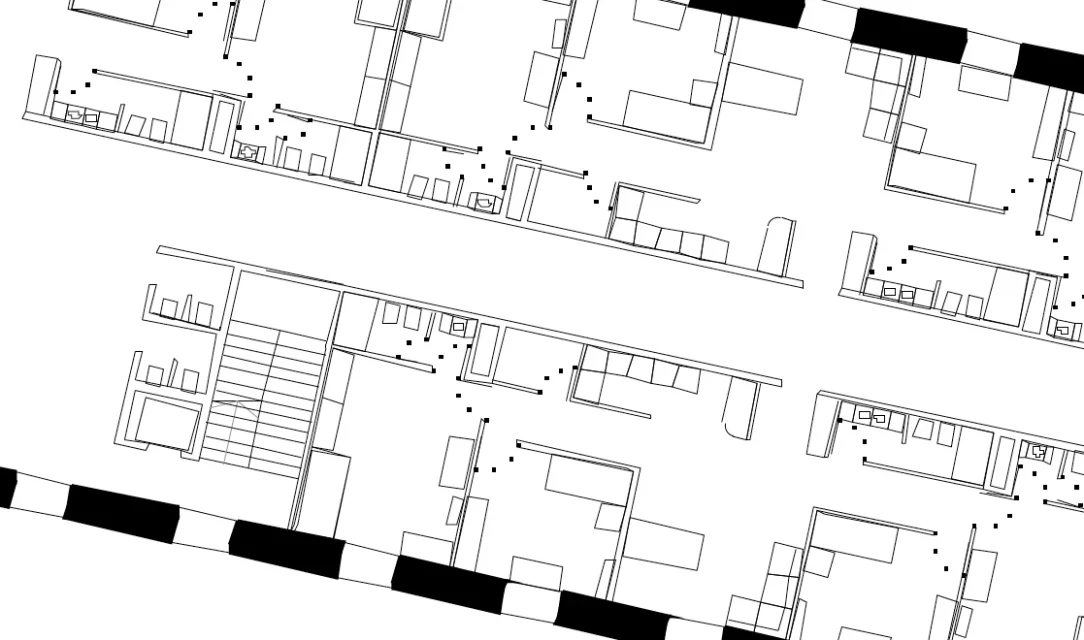

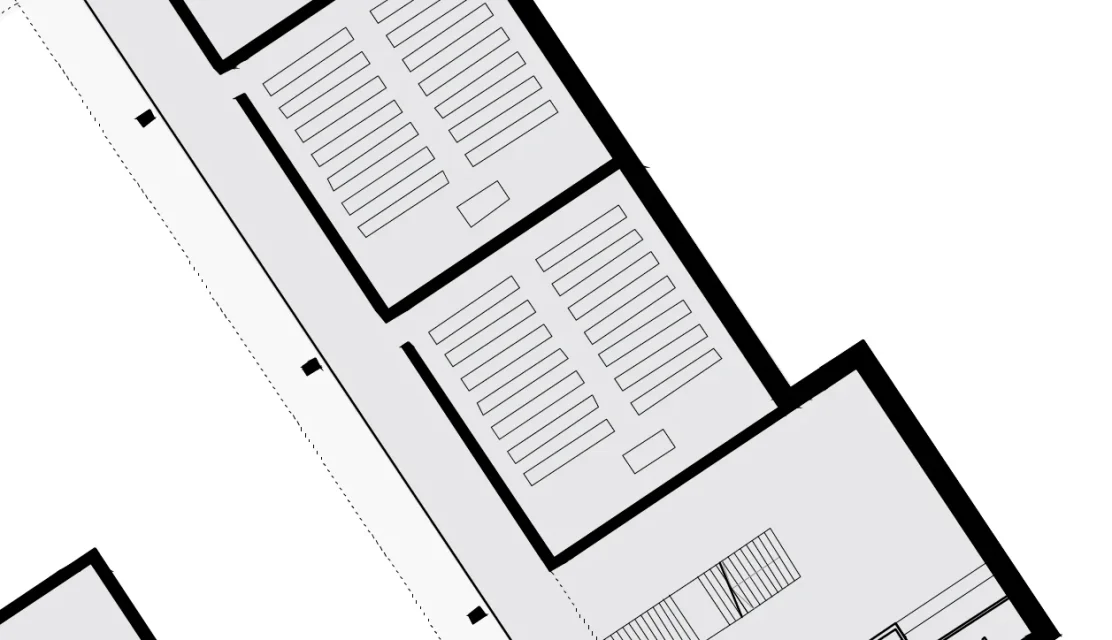

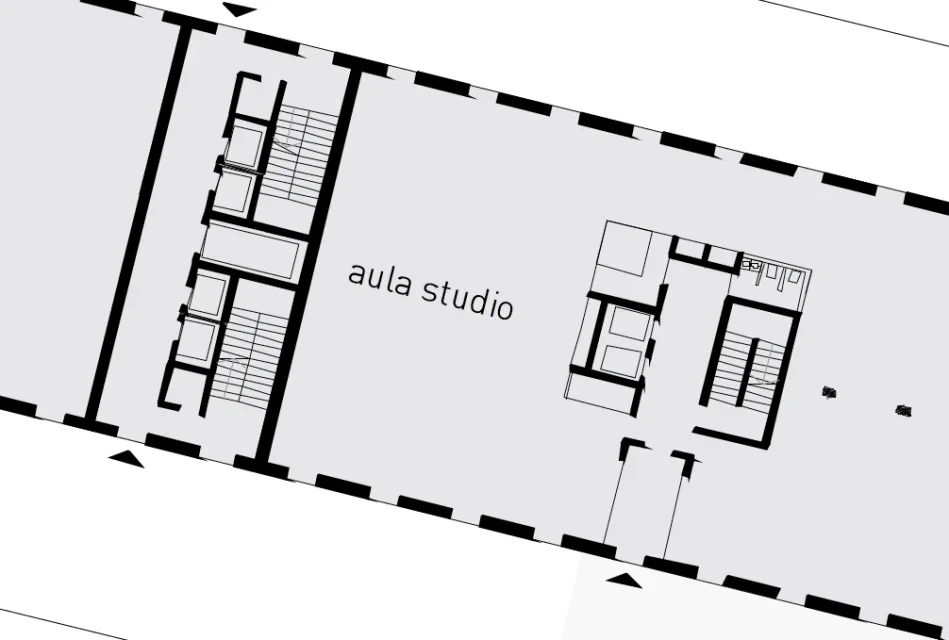

I attach two parts of the same pdf, one corresponds to the lines in the design and the other those of the xref.

autocad 2015. mac



[BruPisa]

I make an up of this post.
The problem seems unresolvable.
I had xrefs and blocks, I disconnected and exploded everything but nothing, continues to give unacceptable results!
Can anyone help me?

Thank you!



[BruPisa]

Those huge points should be point lines with 0mm thicknesses, among other things, but what worries me most are all those forms, which should be rectangles.



[Tristan]

try downloading a 2017 trial and see if the problem is reproposed. on win never had similar problems
