surface reconstruction

[RS4]

Bye-bye.

I didn't know where to place this discussion then maybe I ask you have moderators to move it where they prefer. .

I would need someone to optimize this surface with any cad I used the catia passing for all the stairways and at the same time must be tangent but with little curvature, I better explain to me you have to copy the ladders of the solid in a fluid way without being concave and convex each other the various patches closed in the end in a single surface. . .

ask everything you want to know

I add iges from me already shaped with the solid and the surface made by me


greetings

♪



[Alex_87]

ciao rs4, prove the vedere with va. fammi sapere. cation



[RS4]

ciao rs4, prove the vedere with va. fammi sapere. cation

thanks for your interest alex..

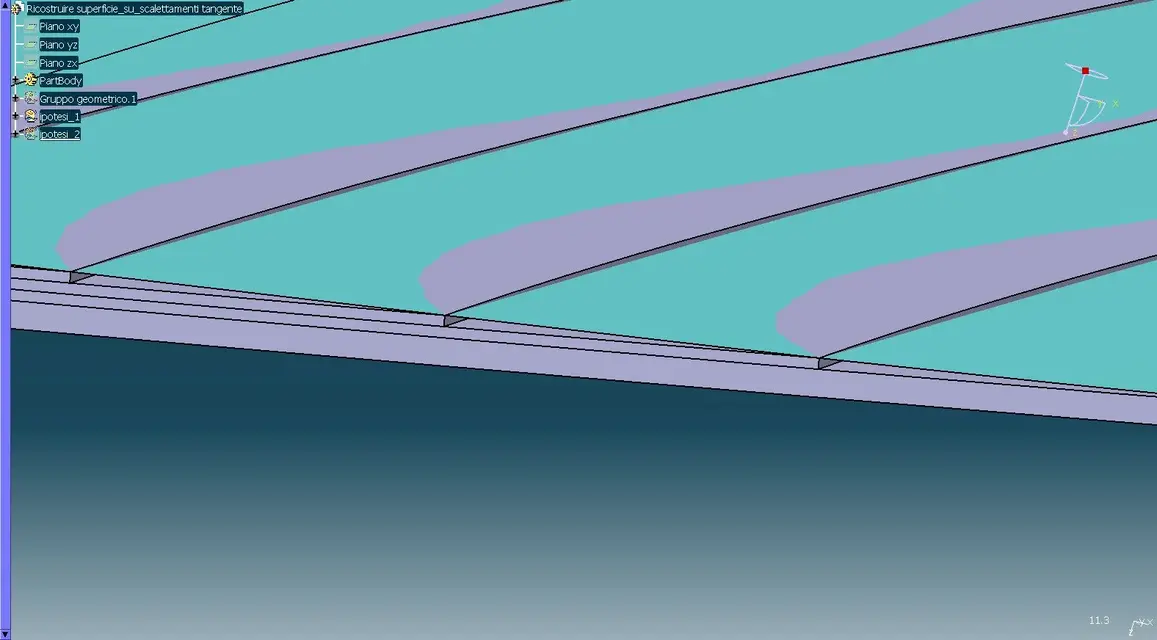

But throbbing does not go well in hypotysis 1 that 2 because it penetrates and even crosses all the thickness ...

well the surface made by me in the groupgeometrico.1 that and type


I attach problems with images

Hi.

♪



[maxopus]

If I have not understood badly, in what you write there is a contradiction.
the surfaces to be realized should not be concave, convesse (there are plans) but at the same time must be tangent between them and this condition occurs (between planes) only if all surfaces belong to a single plane.

so, the only entity that meets your conditions is a unique plan.



[Alex_87]

hypothesis 3 approaches almost to your surface, I took into account the solid and in visualization without edges, the surface is in tangency. Let me know. Hi.



[RS4]

If I have not understood badly, in what you write there is a contradiction.
the surfaces to be realized should not be concave, convesse (there are plans) but at the same time must be tangent between them and this condition occurs (between planes) only if all surfaces belong to a single plane.

so, the only entity that meets your conditions is a unique plan.

Sorry I'm late, but with the work that messed up...

max you are right in the staining area are a series of flat surfaces or rather non tangent surfaces which then connect with the curvilinear part

hypothesis 3 approaches almost to your surface, I took into account the solid and in visualization without edges, the surface is in tangency. Let me know. Hi.

Thanks for the help but it's not good, because it has drafts on both scales and curvilinear.

cmq I found the solution these days the place now I have to fresarla we see the result and I write you how it went

Hi.

♪



[RS4]

Bye-bye.

I wanted to inform you that the surface I completed and worked and the result was discreet... .

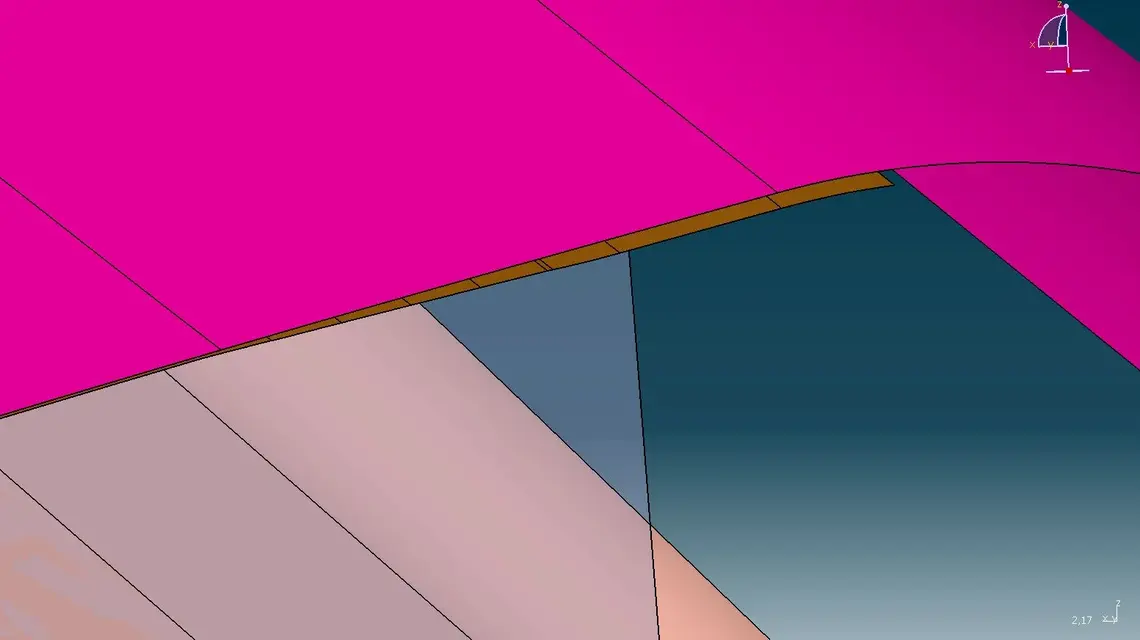

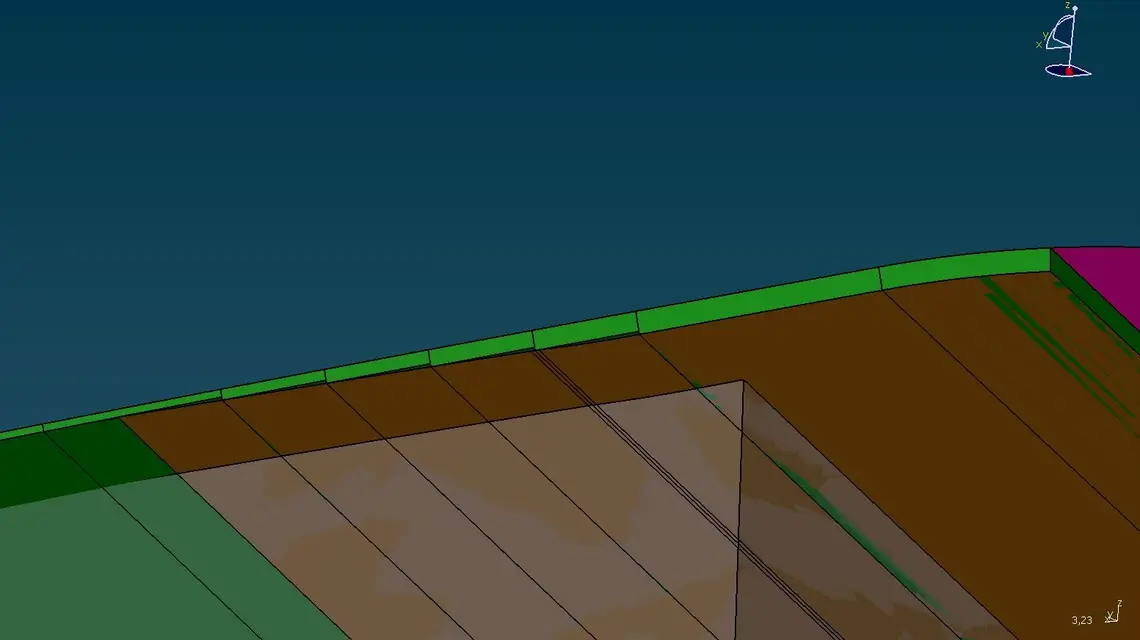

the surface made by me and the brown one

I created it like this:

area scales I have created 5 surfaces between them planes calculating me arc tangence of skewing,

the unlisted part but curve I created various sections in g2 curvature, closing it with a multisection of surface

I have combined the two surfaces of the stairwell and that of the curved area.. .

central pachs could well be neglected because they were minimal

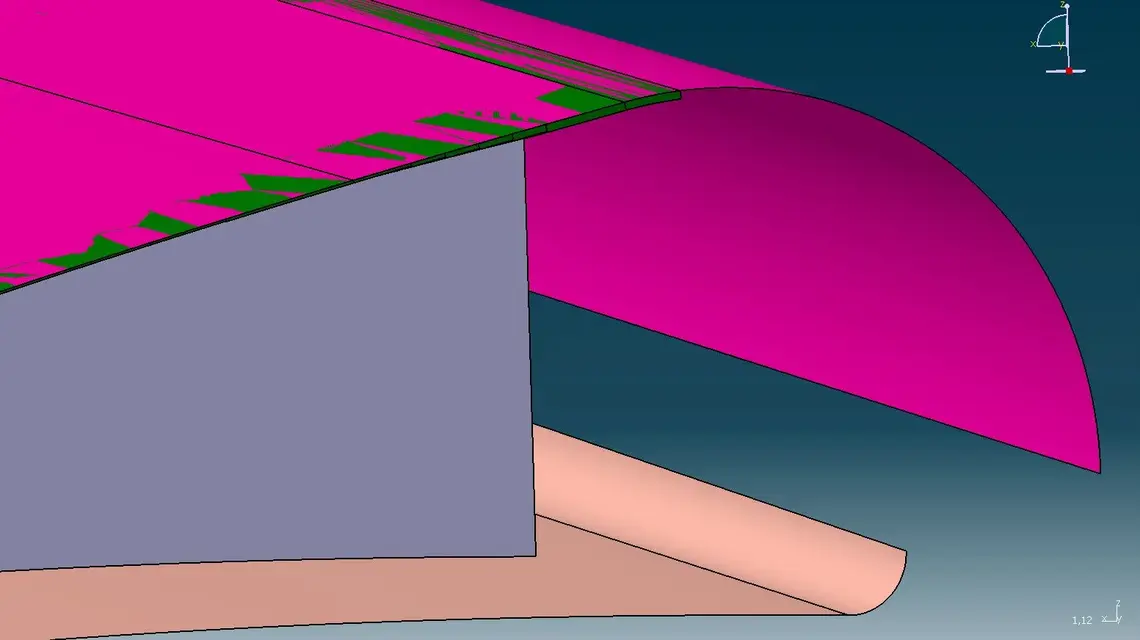

allego img.


greetings

♪
