table of an assonometric split

[legnano]

Hello, everyone.

I kindly ask for information about the possibility to put in the table split assonometrics (the version I use is 2010). I have made some attempt in the environment *.idw but nothing in fact.

Thank you.

the wood



[stefanobruno]

Hello, everyone.

I kindly ask for information about the possibility to put in the table split assonometrics (the version I use is 2010). I have made some attempt in the environment *.idw but nothing in fact.

Thank you.

the wood

What do you mean you can't?
If you put a view in the plant, make it a complicated section as you want and then create from this the assonometric view, by default you create it dissected.

Bye.



[legnano]

Bye.
This is exactly what I miss: I have a view in the plant (e.g. a cylinder), with the section button I draw the section section to 3/4 (the one that I am interested in right now) but the only vistra that I can add to the design are the orthogonal ones not the assonometric one. I guess this isn't the correct procedure or I forget something?



[stefanobruno]

the only views I can add to the drawing are the orthogonal ones to not the assonometric one

if you indicate with the mouse cursor the position of the projected view not at the top/low/sx/dx but diagonally, you get the assonometric view.

Did I misunderstand your problem?



[legnano]

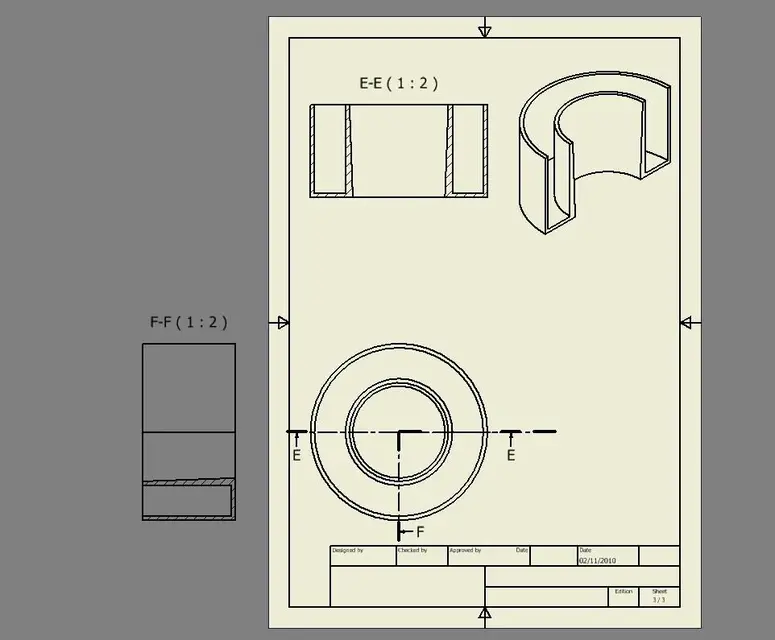

I think the problem has been identified since you have been very clear in the explanation. The fact is that diagonally it gives me nothing. if instead I leave from a already dissected view (see post) with the projected button then if I move diagonally I get the split (which is not what I care about).



[stefanobruno]

I think the problem has been identified since you have been very clear in the explanation. The fact is that diagonally it gives me nothing. if instead I leave from a already dissected view (see post) with the projected button then if I move diagonally I get the split (which is not what I care about).

the two axometers below are obtained from the sez bb in drawing position and after turning the same 90° cw (and return after generating the axometry )



[Tarkus]

Right.
I think what you don't get back is how you do the section... .



[legnano]

Hello tarkus.

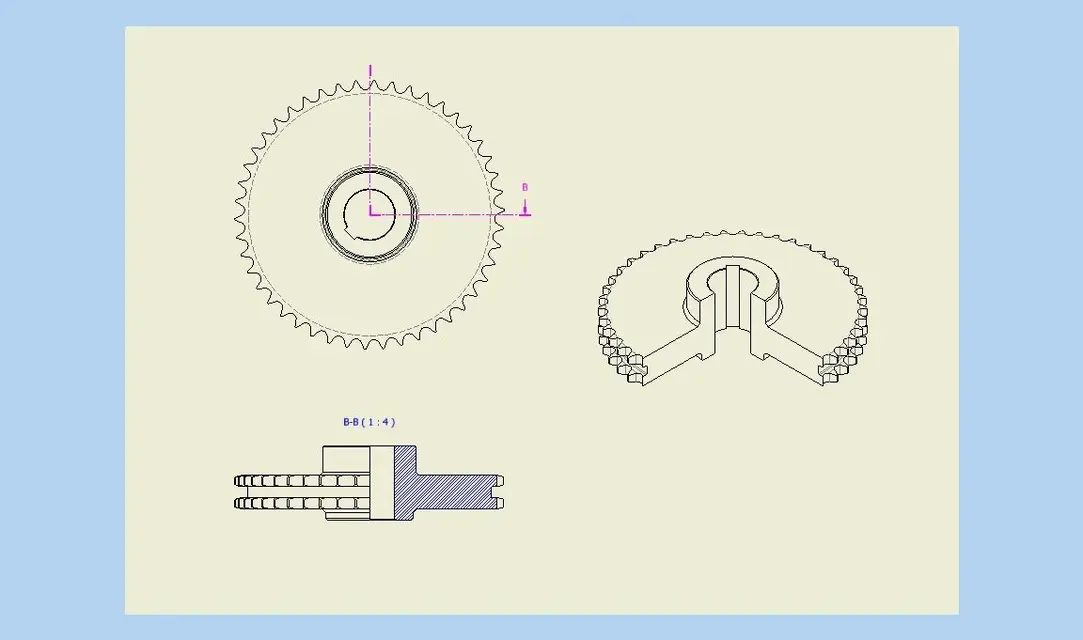

to get the split of the wheel you projected the view in section (b-b) created (and finished) previously. Is that correct?

I ask you finally if you can add the sampling.



[Tarkus]

Hello tarkus.
to get the split of the wheel you projected the view in section (b-b) created (and finished) previously. Is that correct?

I ask you finally if you can add the sampling.

1: Yes, correct.
2: Right-click on the view, edit view; check out the flag "track"



[legnano]

Okay.

post successfully concluded. Thank you very much for the suggestions.

soon
