as from title I have to create a tape with a "l" shape seen in the plant; These roller shutters have various gdl, as well as to make curves on the xy plane and for the classic reference below also have a maximum curvature backwards of about 20°.
I got a pretty truthful result with the joint constraint, but the step of the stage is 38.1mm and I have ~ 14 meters of tape for a total ~750 jerseys... and it turns out a little slender to put them all by hand.
suggestions?



[Catafratto]

If I understand what you're talking about (type tabletop or stuff like that), you could also model a roller shutter and then make it solid a series on the path, if you only need it for ingombs/aesthetics... alternatives that preserve your mental health I don't see...



[reb_bl]

If I understand what you're talking about (type tabletop or stuff like that), you could also model a roller shutter and then make it solid a series on the path, if you only need it for ingombs/aesthetics... alternatives that preserve your mental health I don't see...

if I have understood you say, create stage [fatto], creates skeleton with repetition of points and propagates, right?



[Catafratto]

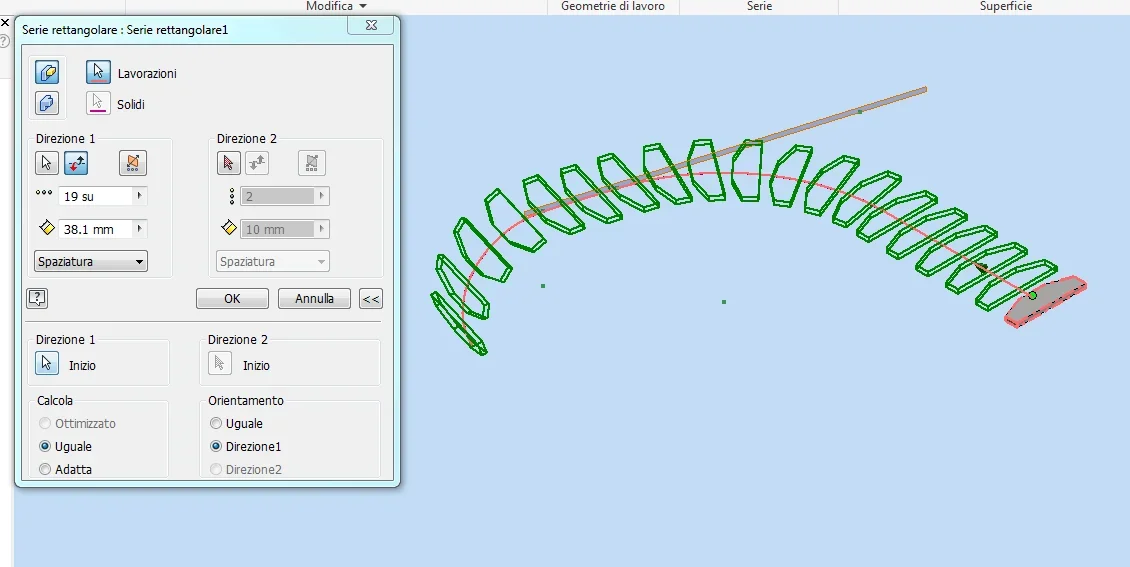

even if you want the aid: I thought:if you've never paid attention to the orientation voices (which "folds" the stage) and at the beginning (start the path on a point of reference of the stage, in my case you will notice the green dot on the solid to serialize. if the path is complex projects the various sketches of the path in a unique 3d sketch that makes the whole more stable, the path selects it with "direction 1"



[Catafratto]

if I have understood you say, create stage [fatto], creates skeleton with repetition of points and propagates, right?

skeleton with repeating points... Are we giving different names to the same thing or is it a wonder to me unknown? What do you mean?



[reb_bl]

skeleton with repeating points... Are we giving different names to the same thing or is it a wonder to me unknown? What do you mean?

I meant that!
It's something I've already tried, but I miss the "extremely" part, at this point I'll do as you say for the fixed points, then the part I need to bend backwards, I'll put those shutters that are lacking by hand with the joint bond.



[Catafratto]

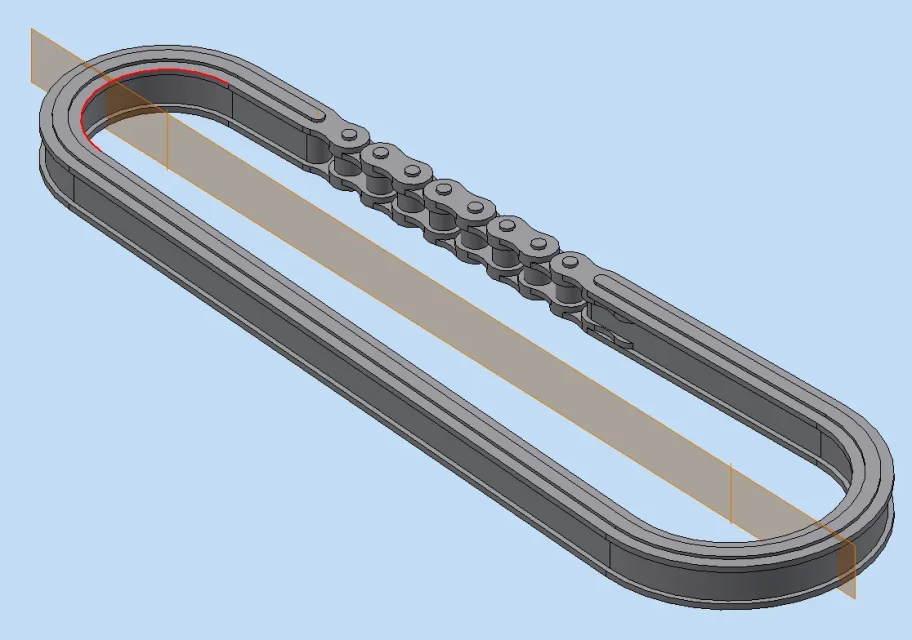

back like that?However often I make a dozen jerseys that understands what is spoken and then proseguo with a sweep for encumbrance and support plans, speeds up the modeling and you understand the same - but the effect is definitely less beautiful
p.s.
how beautiful that works the direct paste copy of the images with the new forum!



[reb_bl]

back like that?View attachment 49692However often I make a dozen jerseys that understand what is spoken and then proseguo with a sweep for encumbrance and support plans, speeds up the modeling and you understand the same - but the effect is definitely less beautiful
View attachment 49693p.s.
how beautiful that works the direct paste copy of the images with the new forum!

Surely it is better to streamline the project, even because otherwise it loads it with biblical times, we say that the study I did it with the joints, but then, having a path 3d preferred to have a correct count of the shirts of the carpet.
if I have to make a normal chain, I miss drawing the 3 shirts "to make understand" way of sweeping great!

thanks to the participation!
