time chart in sw simulation

[TheGio]

Hello everyone,

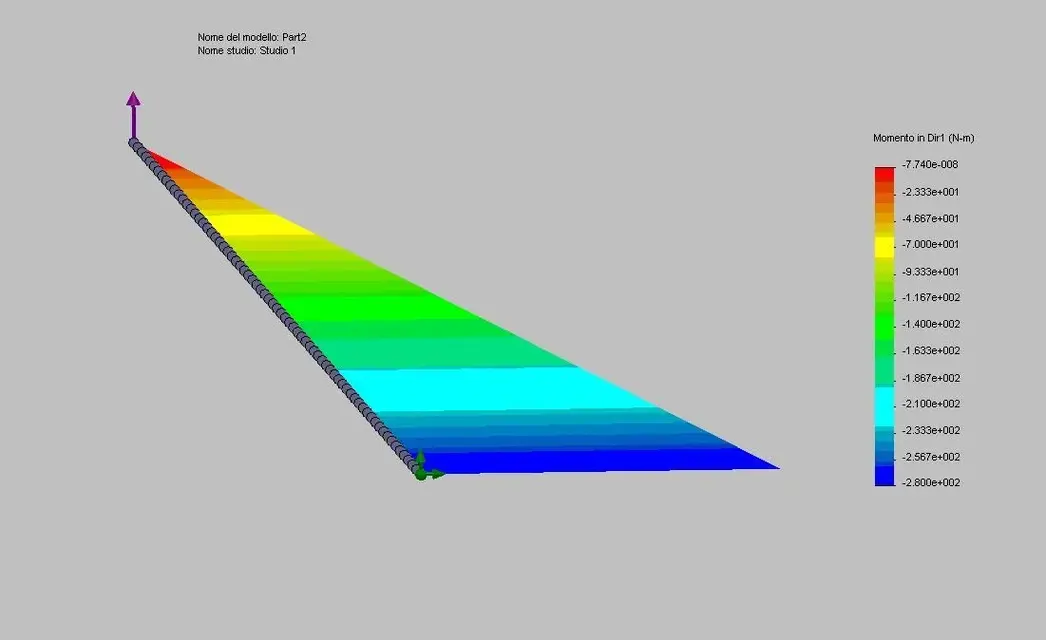

I have to plot the flender moment diagram of a beam with solidworks simulation.
I don't understand why the chart is not on the floor containing the flender moment
in the attached example should lie on a vertical plane, right?
Is there any setting to draw it on the other floor?
Thank you.



[meccanicamg]

Hello everyone,
I have to plot the flender moment diagram of a beam with solidworks simulation.
I don't understand why the chart is not on the floor containing the flender moment
in the attached example should lie on a vertical plane, right?
Is there any setting to draw it on the other floor?
Thank you.

what you posted should have pa tip of the carrier moment in vertical direction (up). then the force is horizontal * the horizontal arm as attached.

as soon as I have a moment I look if it does right with swx 2011 x64 sp 2.0



[meccanicamg]

I confirm that swx does as he wants. or better, he takes abrupt references and puts the diagrams on the wrong side. I'm the same mistake. always turned 90° the internal action plan.



[TheGio]

I confirm that swx does as he wants. or better, he takes abrupt references and puts the diagrams on the wrong side. I'm the same mistake. always turned 90° the internal action plan.

:frown:

thanks anyway of confirmation!!
...I knew there was some setting to draw the chart on the correct plane.



[meccanicamg]

:frown:

thanks anyway of confirmation!!
...I knew there was some setting to draw the chart on the correct plane.

I'm still looking at it but it looks like a definitive answer :frown:



[SolidUser]

Hello everyone,
I have to plot the flender moment diagram of a beam with solidworks simulation.
I don't understand why the chart is not on the floor containing the flender moment
in the attached example should lie on a vertical plane, right?
Is there any setting to draw it on the other floor?
Thank you.

I confirm what was written by mecc...
♪ video for your personal culture.
