together with parametric components

[fabiosam]

Good morning to all

I was trying to figure out if it is possible to do this thing I indicated in the title. to explain myself better I made this example that represents a transmission system in a vehicle purposely very stylized.

It consists of 4 wheels, 2 differentials, and 3 axes of which one central and 2 semi-axes. the difference between the central axis and the two semi-axis is that the central one is + long. to build the axes I defined a part for the central axis and one for the two semi-axis. while it would be more useful to define a generic axis part and change only the length when the axis was central or as a semi-axis.

Can you handle such a situation? I have seen that, for example, color can change but if I try to change the length is changed globally.

thanks x ideas/ suggestions



[fabiosam]

oops missed the image

Good morning to all

I was trying to figure out if it is possible to do this thing I indicated in the title. to explain myself better I made this example that represents a transmission system in a vehicle purposely very stylized.It consists of 4 wheels, 2 differentials, and 3 axes of which one central and 2 semi-axes. the difference between the central axis and the two semi-axis is that the central one is + long. to build the axes I defined a part for the central axis and one for the two semi-axis. while it would be more useful to define a generic axis part and change only the length when the axis was central or as a semi-axis.

Can you handle such a situation? I have seen that, for example, color can change but if I try to change the length is changed globally.

thanks x ideas/ suggestions



[DrBarde]

perhaps with ilogic, but i am not convinced by using it little or nothing (not compatible with the plm of my company). maybe those who make more everyday use can help you.

this, at least in the field of work and production, is a countersensus. axis and semi-axis are different parts, so their code must be different. i would like to thank the rapporteur for his work.



[fabiosam]

Thanks for the answer.

The example I proposed maybe wasn't 100% fit. Mine is also a bit of a concept speech.

imagine another case where I have to draw a gear: I am provided with the specifications (number of teeth, internal/external diam and bla bla bla bla blah) but when the design I try to define the specifications as parameters so if someone gets up in the morning and tells me that, for example, the teeth are not + 28 but 32 and the diameter becomes 7 cm I can please it without too much work.

This is not a problem within the parameters window and I change what I need to like. ok but if I want in the same together a 28 tooth gear and together one by 32? since just a gear can be created in a set, I created one of the test and went to see what it generates at low level: There is a feature called ifeature that is probably what you need to study and understand to achieve this type of functionality.

a greeting



[Cast16]

Try to take a look at the ipart.



[fabiosam]

Thank you.
I have to find time to look at him.
I intend to carry out the study, it is quite a complex topic but the tool seems really powerful.



[fabiosam]

I started looking at the tutorial. Unfortunately with the first evidence I made happens that when I try to save the ipart provides the following error.
export of unsuccessful project processing table.from the research have jumped out these two discussions in forumscreation i-part failedhttps://forums.autodesk.com/t5/inventor-forum/can-t-make-an-ipart/td-p/3001660seems to depend on excel, but I have excel installed correctly, indeed if I do inside a part file insert object + excel sheet does not give me problems
I don't think it'll be easy to solve this. Has anyone been through this?

a greeting



[Cast16]

I started looking at the tutorial. Unfortunately with the first evidence I made happens that when I try to save the ipart provides the following error.
export of unsuccessful project processing table.from the research have jumped out these two discussions in forumscreation i-part failedhttps://forums.autodesk.com/t5/inventor-forum/can-t-make-an-ipart/td-p/3001660seems to depend on excel, but I have excel installed correctly, indeed if I do inside a part file insert object + excel sheet does not give me problems
I don't think it'll be easy to solve this. Has anyone been through this?

a greeting

It never happened to me, so I can't tell you.
try opening the included (ipart) file and see if you have problems opening, changing member or saving it:



[fabiosam]

thanks for the answer and material.
then ... after opening the file, in the browser button dx mouse on table and select edit tableI work with changes like gate 4 fields and 2 I make them become key fields (I don't understand what I'm doing but that's not the point).
No problem.
I repeat the operation to see if everything went well.I would say yes.
not only if select edit by spreadsheet opens me properly excel with its content.
now I leave from a file I created: it is a trivial cylinder.

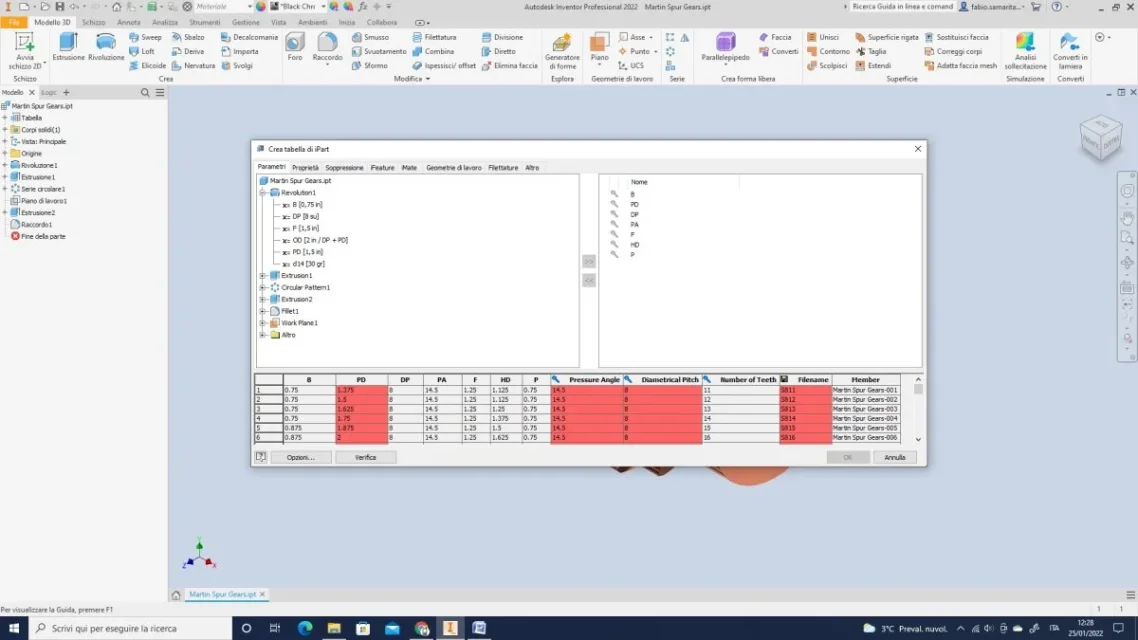

in the premo management pane creates ipartI confirm with the ok button and this is the ahime resulta greeting



[fabiosam]

apologise instead of the last image considered the following:in what I had proposed before I had manually inserted an excel sheet as an object to see if I could solve the issue in this way, but obviously not.
thanks a greeting



[Cast16]

I don't know what to say. Looks like you're doing everything right.

I would try:
-install latest updates;
-proving inventor reset utility;
-Contact your dealer

There is a discussion in the forum in English. someone had such a problem.
seems to have solved uninstalling and reinstalling office:

Creating iPart - "No error message is available."

I'm attempting to convert a simple pipe to an iPart for authoring in the Content Center. Inventor will not let me create an iPart and shows the message below. Does anyone have a solution for this issue? OS: Windows 10 Inventor 2022

forums.autodesk.com
