trasparenza party

[MARCOC]

Hello everyone

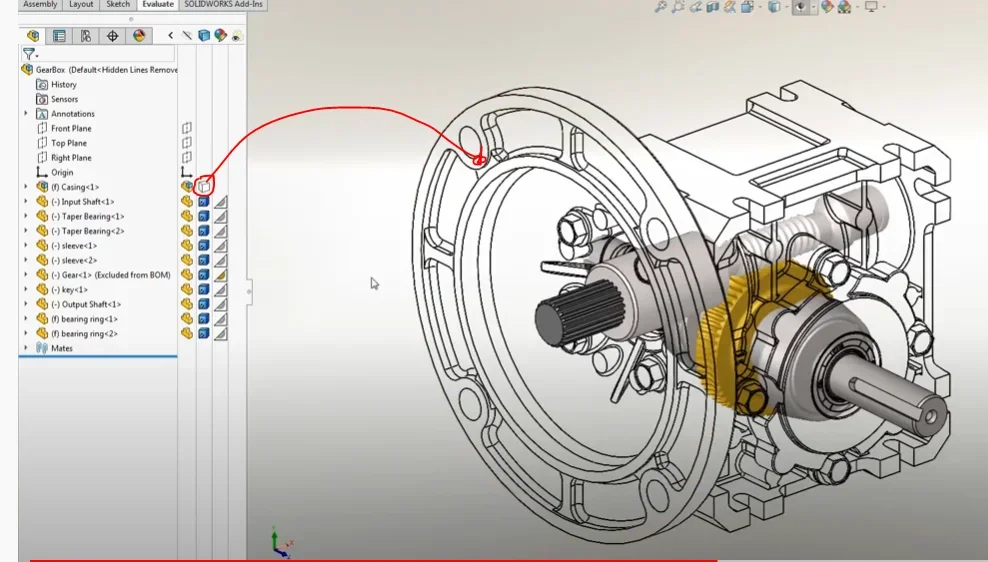

I put an image taken from the internet
I can't replicate transperence

if I put an object in hidden lines mode, it does not become transparent, as you see from the image

Do you have any additional settings to do? ?
My image
hides the detail inside me



[MassiVonWeizen]

Do you have any additional settings to do? ?

no



[MARCOC]

what can it be? bugs in installation?? ... the image and made with 2021, but I tried with 2020 and 2017 and always same situation



[MARCOC]

I tried on a file created by 0... it works on 2021 but not on 2017
is it possible that this function did not exist in 2017?



[graziano-g]

Hi, I think what you're looking for is this, then maybe I'm wrong.
sw2020
Hi.



[MassiVonWeizen]

Hi, I think what you're looking for is this, then maybe I'm wrong.
sw2020
Hi.

really marcoc has already solved with 2021. looking good from saying how obviously.



[MARCOC]

That's not the transparency I have to get, but the transparency at the table.
as posted on 1 image

If you read well I wrote that I did a file from 0...and the thing worked on the new file..in 2017 version and you file old even with the 2021 it does not go
(so somewhere there is a setting to set...but what I don't know)



[MassiVonWeizen]

That's not the transparency I have to get, but the transparency at the table.
as posted on 1 image

the first image is in the environment together and not in the drawing environment!! ! !



[MARCOC]

what center...that image is the passage to have transparency at the table...if it does not work together you can not get at the table

if someone still used the 2017 version...and had desires to try..cosi to understand whether it is a version problem or other type



[drake]

sorry marcoc post image you got with the 2021, so then you can do some tests even with the 2017 that I still installed



[MARCOC]

here is the difference



[graziano-g]

Hi, sorry, but I miss something, you're always in the environment together. Didn't you say you wanted to get transparency in the table? Also you do not see if in the meantime you have generated a new display status.



[drake]

I figured out what you'd want to see in the table, but I figured that's what I got doing the proof you requested.
in the first picture see the axieme.. .in the second picture see the result at the table.. .Finally, as you see in this last image, even setting transparency as it had indicated you grace-g you get the same same result on the table.

so to me with 2017, making an ex novo model worked.



[drake]

I just tried to open the model with the 2020 version, and get the same result, with the only difference in the graphic representation of the dotted lines, which I think depends on the sw settings.



[MARCOC]

Let's forget the speech table because we don't get out of the speech
valuate the 2 images of assemblies
do you notice the difference?
in 2017 the component below hides the component part above
in 2021 instead it shows
now my question is someone who has the 2017 version can if you want and time try to see if setting a compost together as "removal hidden lines" and see if you view the components below as the image 2021?
thanks and all



[MARCOC]

I just tried to open the model with the 2020 version, and get the same result, with the only difference in the graphic representation of the dotted lines, which I think depends on the sw settings.

so drake the image of the two rounds together did it with 2017? if yes then and my installation that has some problem..or there is some settling that escapes



[drake]

so drake the image of the two rounds together did it with 2017? if yes then and my installation that has some problem..or there is some settling that escapes

sure I did it with 2017 and then I opened it and converted it with 2020 and in both it works, both setting the removal hidden lines as indicated by you, and setting the transparency as indicated by Graziano-g. to me since 2011 with which I started working with sw, to today with 2020 I never happened such a thing, so I don't know exactly what pose to be.



[MARCOC]

Okay drake thank you so much... . then I try to correct the installation and I will follow you on how it goes



[MARCOC]

nothing to do I tried to make a repair installation... I did not solve anything
I'm convinced that there's some set-up to set up



[czar]

Hi, I repeat this topic.
in drawing environment I must make an object "transparent" so that you see the content without using section functions. the view is in perspective, it is material for manualism that obviously is made with the wrong tool but this is it.
