marcoevolution
Guest

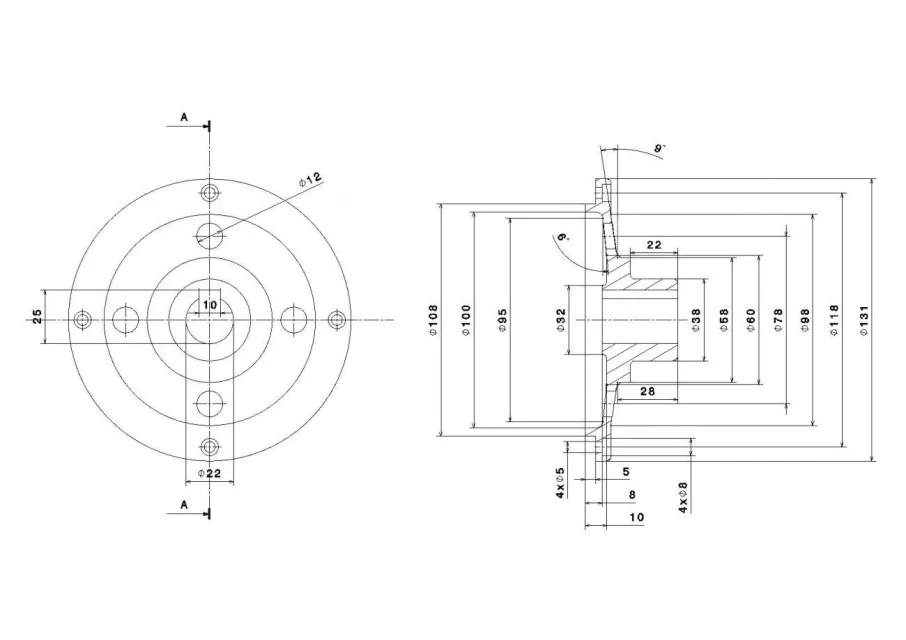

clearly to make such modification to the axes of the holes that were previously tilted, I made the model cad
clearly to make such modification to the axes of the holes that were previously tilted, I made the model cadfalonef
Guest
Why did you do it again?
if it was well built it was enough
if it was well built it was enough
MassiVonWeizen
Guest
missing the depth of the lamatura for the seat of the brugola screw
the diameter of the holes d 12 better to put it on the left view. In general I always put the quotas that define the same geometry (work, engulf, intera..) in the same view so that the operator has pegged under the eye what he has to do without having to jump from one view to the other.
in this case the seat of the screw is quoted to the right and therefore it is good also the diametral quota of the intersection, while the quota of the hole from 12 is to the left and makes it more clear to have also the quota of the diameter
the diameter of the holes d 12 better to put it on the left view. In general I always put the quotas that define the same geometry (work, engulf, intera..) in the same view so that the operator has pegged under the eye what he has to do without having to jump from one view to the other.
in this case the seat of the screw is quoted to the right and therefore it is good also the diametral quota of the intersection, while the quota of the hole from 12 is to the left and makes it more clear to have also the quota of the diameter
marcoevolution
Guest
because I obviously combined a mess with father-son relationships between the various features and then exchange the order of the two features (before triangular tab for the conicacy) generated different errors
marcoevolution
Guest
the depth of the lamatura if I added the dimension of the thickness encumbrance can be thought as a obtainable quota ? i.e. depth_lamatura= dim of encumbrance - n quotas reported
MassiVonWeizen
Guest
No. I have already written that there must be no quotas from calculations.
MassiVonWeizen
Guest
all the taut at the bottom of the flange should be reviewed.
What do you mean? at the beginning of the diameter 32 inside (iin that case it is better to put it close to 32) or at the bottom lamatura than at the beginning of the piece from the left?
is missing at least another quota to define that flange
What do you mean? at the beginning of the diameter 32 inside (iin that case it is better to put it close to 32) or at the bottom lamatura than at the beginning of the piece from the left?
is missing at least another quota to define that flange
marcoevolution
Guest
If calculations are not to be made I just have to enter the depth of the enlarged seat of the hole, right?
MassiVonWeizen
Guest
that to define the lamatura, which is the correct name of the enlarged seat.
but there are no quotas to define the external profile. 28 is the end of the inclination, but how much is the measure of departure? That 32 you put in the first draft where it ended?
falonef
Guest
Perhaps it would be the case to post the new version with all the recommended improvements.
but a few days after the examination still all these difficulties and doubts...?
And yet the piece to quote does not seem so difficult.
but a few days after the examination still all these difficulties and doubts...?
And yet the piece to quote does not seem so difficult.
marcoevolution
Guest
by now it went as it went: today I supported the exam (honestly I am pessimist for the complexity of the assigned piece and for the little time had available
meccanicamg
Guest
What piece did you get?
falonef
Guest
In fact, I would like to know what piece he had.
and then how did you work it out?
with catia v5?
if you where? at home or at s(q)uola?
marcoevolution
Guest
then the examination consists in the extraction,modelling 3d and putting into the table of a particular of a total and in the realization of a link tree-mode with the bond of the association of the diameters of tree and hub, all in caia v5 and max 2 hours :maybe if q someone interested in knowing the actual part that happened to me, but if it may interest we could speak for private message very gladly =)
Utente cancellato 70856
Guest
una
Don't you have a photo?
MassiVonWeizen
Guest
It's nice to read that after some users got banged to comment and correct drawings now becomes a private thing in a few. they sell siores and siori that we have the secret of flea. . .
falonef
Guest
so if I have understood each user at school has brought with it a machine with on installed a different cad from each other user and then you have done the same task in class?
Utente cancellato 70856
Guest
really he said
Utente cancellato 70856
Guest
the future engineer snobba
think if it is assumed in your society as your superior:
marcoevolution
Guest
First of all, I would never let myself break you for two reasons:
1)I talk to people who are more quoted than me
2) would be more than irrecognisable to people who have been more than available to me than to me.
Unfortunately being a student outsede this year I changed home and the internet line still do not install it: I can connect and then answer or if I am in university with the wifi of the unit or busting the evening the internet =) at home of some friend who rightly has also his commitments and therefore not always is available
conclusion: contact fastweb for complaints about the installation time of new internet line
then the software recommended by the prof is catia v5 because to the prof we say that pudicamente does not like solidwork but you can independently choose other software type nx or autocad but that does not do it because then to lesson (it is 48 h course to divide between cad and quotation notions, technological work etc..) he explains the caia commands v5
from two years to this part there is a student version of catia provided by 3ds academy and then we exploit that.At the exam you carry your pc and in the technical drawing room (that pencil and team) you do the exam.
1)I talk to people who are more quoted than me
2) would be more than irrecognisable to people who have been more than available to me than to me.
Unfortunately being a student outsede this year I changed home and the internet line still do not install it: I can connect and then answer or if I am in university with the wifi of the unit or busting the evening the internet =) at home of some friend who rightly has also his commitments and therefore not always is available
conclusion: contact fastweb for complaints about the installation time of new internet line
then the software recommended by the prof is catia v5 because to the prof we say that pudicamente does not like solidwork but you can independently choose other software type nx or autocad but that does not do it because then to lesson (it is 48 h course to divide between cad and quotation notions, technological work etc..) he explains the caia commands v5
from two years to this part there is a student version of catia provided by 3ds academy and then we exploit that.At the exam you carry your pc and in the technical drawing room (that pencil and team) you do the exam.
