draw a sheet

[maxopus]

I don't know what version you have, I'll put you a xt file.
If you can't open it, maybe ask if someone can convert it to dwg format.

post an acis (sat) (chosing a very old version), so it can open it with autokrak



[Mike1967]

post an acis (sat) (chosing a very old version), so it can open it with autokrak

Very kind. uppo in version 5... sperem.



[xxfast]

:biggrink "thank you," you hear that I want to practice just with autocad 3d I put my file , look it's a mess I can't make the side sheet that in addition tilted is also shaped...you have ?thanks:smile:

l'ho rifatto con autocad, tristissimo....:frown:View attachment 25046



[jim78b]

thanks you have done a good job with autocad you can't do those cuts!!



[Mike1967]

thanks you have done a good job with autocad you can't do those cuts!!

Now, I don't know how the 3d of autocad works (I look at it well) but I think it is on the false rhino line with the various primitive, boleane and loft various.. Am I wrong?

objects like and more complex than this I have always drawn them without problems.
for certain objects, when I still did not have solidworks, I leaned a lot to rhino, in practice I drew and after with the function unroll (store ehhhh) I unrolled the side that interested me.
then with a single size/cuci geometries and I had the figure developed in whole... an epoeia... :biggrin:

I do a search on my hd, if I find a 3dm file place.
I press that in any way in 2d it is possible to draw anything... the only
inconvenience is the time to use.



[Mike1967]

Here are a couple of examples performed with rhino, I don't know if you can open them with ac.



[jim78b]

ok but the nice that I had prefixed was to do it in pure autocad but a mess, I tried with sketchup but nothing



[jim78b]

more than anything in autocad I care about the process to do it!



[maxopus]

I don't know if in the new releases of autocad there is the function of thickness.
In case there was the easiest way I think is to build the outer surface of geometry and to thicken it.
try and see if it works.



[Mike1967]

more than anything in autocad I care about the process to do it!

the process is nothing but create projections of the internal faces by combining everything into a unique figure.
in antiquity there was only the tecnigraph, and for me working at the counter, goniometer, teams, row and point of sign.
Try to develop an open cube on one side and then try with a trapezoidal parallelepiped, when you understand the system you can develop everything.

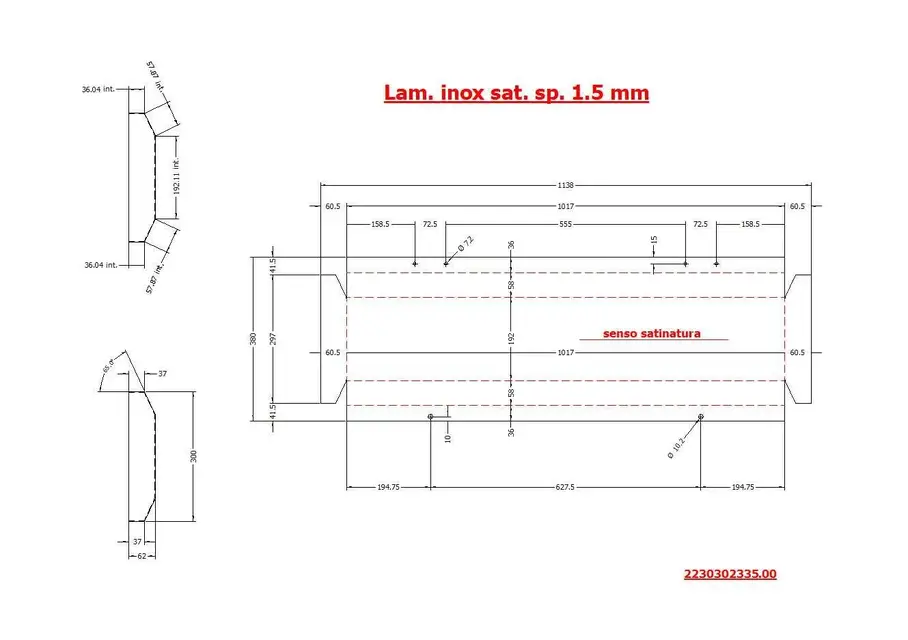

I attach an image to you, look at the notes in red.
for development, project the faces from the inside and as fulcrum the inner edge of the tray.

nb: the attachments are all 2d drawings, take the cue.



[jim78b]

Okay thank you again, I was trying with sketchup I almost managed!



[lattu]

realized with autocad 2012 in about 15 minutes.
this piece is perfectly feasible from the r14 version



[jim78b]

I'm sorry I can't open it. I have 2008!



[lattu]

I rearrange the 3d in version 2007.
for the development of the plates with autocad you have to do to manina

ps: I am not mechanical so there may be some inaccuracies



[jim78b]

I wonder how you did I blasphemize when I have to tilt the side plates and then build that under bent!



[jim78b]

but in the end I wonder if the 3d serves, if with autocad the table you can not do associative what sense it has or wrong then I lose a lot of time... .



[lattu]

you always start with dismantling the complex figure in various simple forms.
the 3d is not indispensable but helps to have an immediate eyelash of the object



[jim78b]

Thanks again
