estrusion on surface bitch

[3dxx]

no is not within the style module.
You can post the file that I look at, so I can help you better.
the extended command is part of the controls for the surfaces.



[Cla]

Now I can't post it...cmq I have a pretty complicated surface (imported by other .asms in my file). I put myself to make "project" of all the surfaces that make it on a floor to identify a sketch to extrude to the surface that originated them. It seems absurd not to have other ways of proceeding.. The solidification gives me error...the thickness varies uncontrolledly to me the geometries... possible that I can only make surface by surface? ? ?



[maxopus]

without seeing the file it is difficult to give an answer (at least for me).
Do you have anything like you can post... without giving us that file?



[Cla]

the file is this attached



[3dxx]

you have to work a little with the surfaces here.
explain to me if I understand correctly you have to stop the whole profile



[3dxx]

instead of projecting the curve use the extrusion command, project the profile you want to get and extrude



[Cla]

as I do to extrude the only thread instead of projecting it, from the extruded command I only have the possibility to define a sketch ...



[3dxx]

When you're in the sketch, you need to project the super-fowl edge that you need to extrude



[Cla]

I must absolutely understand why when I cover the geometry to project my profile on the sketch pèiano do not match the curves...caspita .. is a continuous line of reference geometry. . . ! !



[maxopus]

even if in the file you posted you do not understand much what is the good.... there is a series of overlapping surfaces and some are a little unconceived with discontinuities in some points.



[Cla]

Bye to all,

I should always do an extrusion on the previous file until the feature offset_78_2 ...I just can't do anything...I can't do anything from mistakes, if then I try some stratagem the surface is deformed. . .



[sh4d3]

Hello everyone, I have a similar problem: I should draw a tube along a curved surface, how could I do that?

Here's the drawing. .

I marked in red the profile that I should extrude (should remove material).

Is that possible? thank you all.. .



[maxopus]

Yes you can ... if you post the file would be better, indicating the version used.



[sh4d3]

The proe version is in my avatar, here's the file... Thanks



[maxopus]

the files is better to attach them in zip format, not post external links to cad3d for downloads.
Thank you.



[sh4d3]

scented, ricevuto..



[maxopus]

I have a later version but the mode is identical.

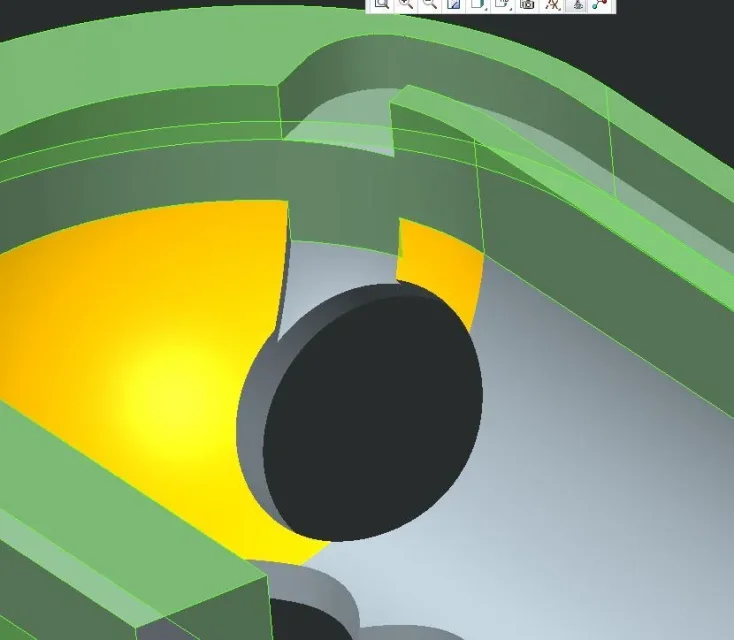

Look if the attached image is what you want to get.



[sh4d3]

Sorry, received. .
thank you! more or less...I had to do a dig, but it does not have to get to completely wash the shell below. It's a tube to pass wires.



[maxopus]

obtains an offset surface (red) of the original surface (yellow).
Extrude to the offset surface to obtain the result of the second image.



[sh4d3]

Great thank you! I immediately try! :
