nx student in difficulty with technical drawing

[Stefano Torino]

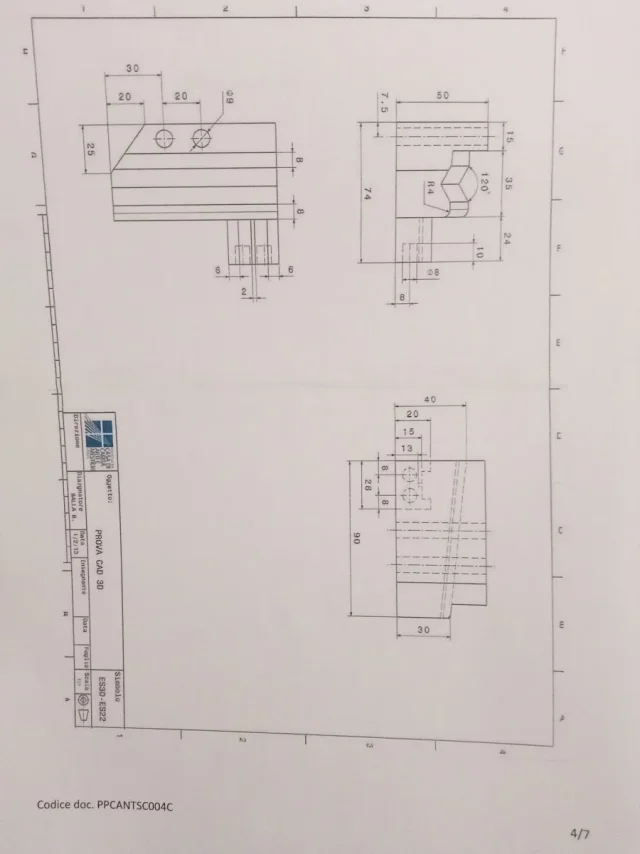

Hello, everyone. Unfortunately they are at the first weapons with the technical drawing coming from another profession. in particular in the course I am experiencing problems in the isometric reconstruction of this design despite trying to apply the theories so far studied.
a written explanation would be uncomfortable for everyone, but if I could also have a shot or free hand sketch of the figure that gave me the idea of together I would finish the study better I understand the mechanisms to reproduce the visits in perspective.
Thank you.



[MassiVonWeizen]

you put your idea and pol corrects it and discusses it together.
the forum is full of discussions about drawings, dispenses and other material.

the title of the discussion would be reviewed because it makes think of a problem regarding software, besides the fact that putting its name in the title has no utility



[MassiVonWeizen]

did you quote that design?



[Vittorio]

if I understand your problem
from that 2d design you need to model the object in 3d?



[MassiVonWeizen]

if I understand your problem
from that 2d design you need to model the object in 3d?

It seems to me that the isometric view "bidimensional", in fact asks for a sketch that would make no sense if it should shape the object.
sure using nx could make the pattern and really see how it is the isomtrica... Could.. .



[Vittorio]

Since he is a former cook, he gives me the impression that he is not able to understand the 2d design to rediscover the 3d.
then asks a free hand sketch to better interpret the 2d

But we wait for more clear news



[Stefano Torino]

did you quote that design?

no is an exercise that has given us today



[Stefano Torino]

first of all thanks for the availability. In fact it is only 5 weeks that I started learning 3d modeling on nx. the course is one year, but for now it is very marked on the passage from 2d to direct modeling in 3d.
and for me it is difficult.

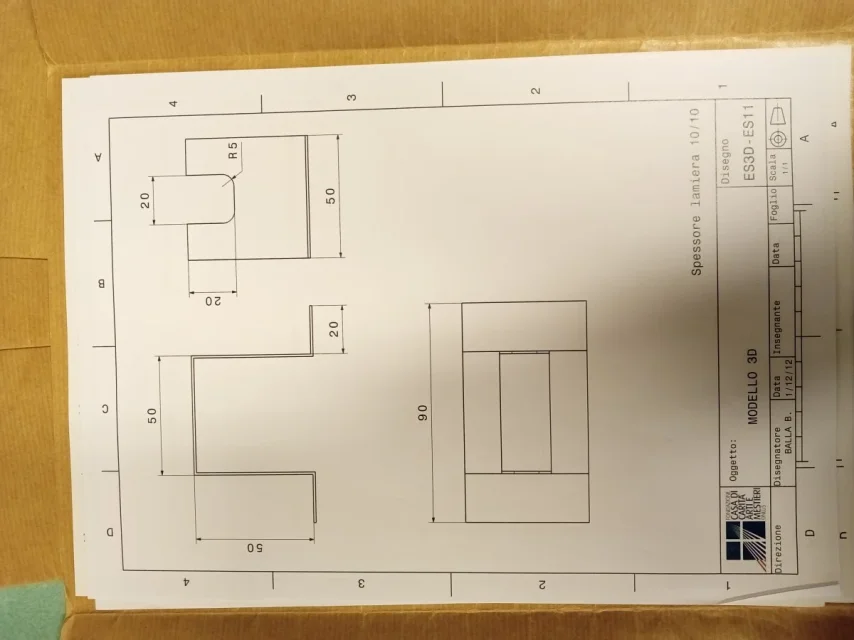

I still began to grind videos and technical drawing books these few days and for now this design is beyond my reading limit and understanding of form. also trying to pull over lines of views. Attached I put other simple exercises that I managed to interpret and model with nx. quoted in European view and also in pmi.



[MassiVonWeizen]

so you have to make the solid model with the nx program and non obtain the isometric view through the projection of the two-dimensional design.

the design you have underhand is understandable even if quoted badly.

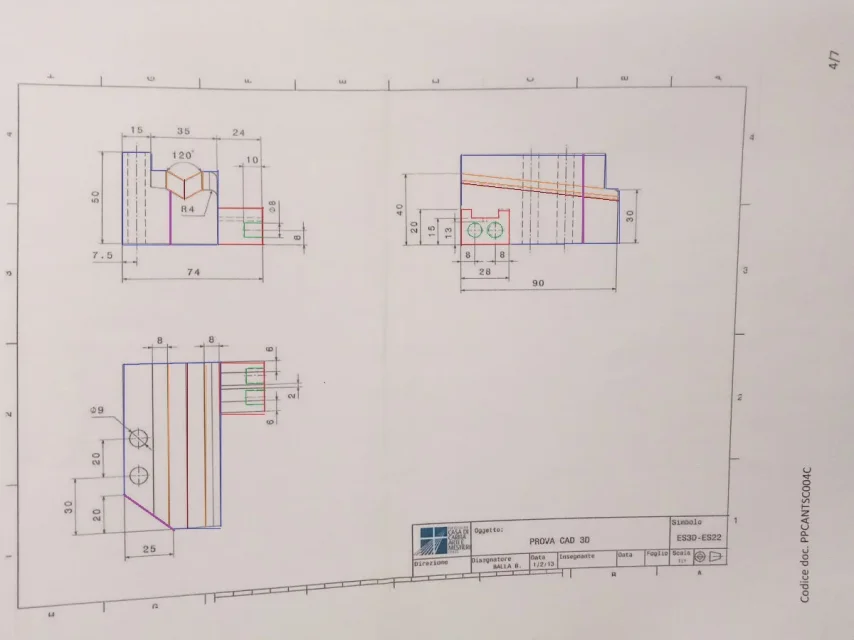

you can divide the object into two:
-a 80x50 90 long rectangle with a v throat (blue color*)
-a 24x20 28 long rectangle with a c throat (red color*)
Make 2 copies of the drawing and delete alternatively one and the other in order to focus attention and quotas only on one at a time.

*I attach the design with discriminating colors that should help you identify the various geometries



[Stefano Torino]

Good Sunday to all. I answer you again before you read the message completely to say goodbye and tell you that as soon as I understand how to put my photo you will be able to give a face to the profile. agnimente some exercises such as this are taken over by two teachers: one for the compression of the technical drawing that requires us various things including the paper production of isometric views with the classic professional design tools (compartments, boards etc...). and then in other hours of lesson, having understood the forms and the theory of the object a second teacher instructs us on the procedures of construction of the solid and the best commands to obtain a chronological tree as light and understandable as possible.



[MassiVonWeizen]

agni so some exercises like this are taken into charge by two teachers: one for the compression of the technical drawing

And wouldn't it be more logical to ask him to clarify your design?



[Stefano Torino]

so you have to make the solid model with the nx program and non obtain the isometric view through the projection of the two-dimensional design.

the design you have underhand is understandable even if quoted badly.
you can divide the object into two:
-a 80x50 90 long rectangle with a v throat (blue color*)
-a 24x20 28 long rectangle with a c throat (red color*)
Make 2 copies of the drawing and delete alternatively one and the other in order to focus attention and quotas only on one at a time.

*I attach the design with discriminating colors that should help you identify the various geometries

Thank you very much! I will try to work on it right away even if being out of the house I don't have behind the briefcase with the necessary. I currently live in torino and started this course not because I wanted to improvise but to learn how to "give a 3d form" to my knowledge and years of practical needs while working.( tools, packaging etc.) that does not exist yet or is not well developed.
I am developing a deep esteem for you professionals discovering that as a professional kitchen the cad mixes innate creativity and study that you can not invent.



[Stefano Torino]

And wouldn't it be more logical to ask him to clarify your design?

Yes, but they give us 24 hours and a score at the end of the verification and in this course are the only one to be so back from being in a different level of departure.
being in the middle of the weekend we had from Friday to Monday morning to prepare the verification.
I still work occasionally and just on the weekend. not finding much time and energy to be able to study the document.



[Stefano Torino]

you put your idea and pol corrects it and discusses it together.
the forum is full of discussions about drawings, dispenses and other material.

the title of the discussion would be reviewed because it makes think of a problem regarding software, besides the fact that putting its name in the title has no utility

I only read this message now.
for real projects that for now are only in the head it will be easier to give coherent names and explanations.
In fact I was not practical of forums in general. is the first time I use one. but above all I did not know what to ask.



[Vittorio]

ciao @stefano nxSo I meant well? your greatest difficulty is to interpret design 2d to transform it into 3d?
If it can help you I can attach a 3d image of your exercise.
so you can see the object in 3d and confontarlo with the 2d to proceed with the modeling
Tell me



[wall87]

What version of nx are you using? insert it into the profile when you can.
What are you doing?
that particular can be reconstructed in various ways, much depends also on how much you know the software.
If you want once you finish your 3d I can attach my native to nx, so you can see the tree structure; always admitting compatibility between versions.



[Stefano Torino]

What version of nx are you using? insert it into the profile when you can.
What are you doing?
that particular can be reconstructed in various ways, much depends also on how much you know the software.
If you want once you finish your 3d I can attach my native to nx, so you can see the tree structure; always admitting compatibility between versions.

Hi @wall 87. I am on version 10 and we are told that maybe they will update on the workstation xeon z400 version 12. Unfortunately today I was out of sight to accompany my wife to a training course of herbal medicine (to which I participated with interest and also because organized by my dear friend of that sector). but I could not draw anything if not rested on my legs while I was on coffee break.
arrived a few hours ago at home with paper and free hand pen I understood the design well but it was not photogenic put in isometric view. But with some inventiveness and the last energies I did this. But tomorrow I will bring you my job done in institute.
for construction I would use:
* line of the curved menu extruded in z/y and perforated for the left block of the photo.
* for block with v click that lowers on the front I would do a sketch in z/x - offset curves with distance between points - swipe command to complete the extrusion path - bolean settings join.
* bevel z/x asymmetrical edge in y/x to get the angle as from quotation
* sketch in work activities to create second smaller block, than in the drawing I knew there was but I did not do for convenience. I already create it with holes that will be emptied.- bolean join in extrusion.
* move face to bring the level of the last two holes of the smaller block as from quotation



[Stefano Torino]

ciao @stefano nxSo I meant well? your greatest difficulty is to interpret design 2d to transform it into 3d?
If it can help you I can attach a 3d image of your exercise.
so you can see the object in 3d and confontarlo with the 2d to proceed with the modeling
Tell me

would be very useful! These exercises are clearly made to deceive and make us think about it but for me that I still have to see certain nuances I fear that it will make me go more confused than anything else for now.



[wall87]

I'm sorry, but I didn't understand anything you want to do. (I know, it's not easy to explain in words).
Once you're done try to attach the file and you can talk about it.
Anyway, you're on your way.



[Vittorio]

would be very useful! These exercises are clearly made to deceive and make us think about it but for me that I still have to see certain nuances I fear that it will make me go more confused than anything else for now.

Okay, but I see @wall87 He already did what I wanted to send you.
