projections and gray iso views in drawing

[emanuele grasso]

I have another question,
how do I calculate the weight of a product having parts to which I cannot attribute, through the formula, the weight.. I'll explain.
I put an aluminum plate that by means of the formula calculates with precision the weight by putting it, obviously, the material (aluminum steel etc)
instead if I'm given a math (we take a robot controller apt that in reality weighs 20kg ) and calculates the weight through the formula calculates me an abnormal weight because maybe this controller and full and the cad calculates the exact volume of the controller.
is there a way to manually transcribe the weight (without formula) and make sure that that weight is added to all other components of the product and that therefore when I go to do the "inertia measure" command on the product gives me a true weight?
I hope I've explained



[falonef]

It is not clear to me if you want a pdf of only one sheet belonging to a tar.drawing file rigged by multiple sheets.

test with this option > turn on or off.



[falonef]

I have another question,
how do I calculate the weight of a product having parts to which I cannot attribute, through the formula, the weight.. I'll explain.
I put an aluminum plate that by means of the formula calculates with precision the weight by putting it, obviously, the material (aluminum steel etc)
instead if I'm given a math (we take a robot controller apt that in reality weighs 20kg ) and calculates the weight through the formula calculates me an abnormal weight because maybe this controller and full and the cad calculates the exact volume of the controller.
is there a way to manually transcribe the weight (without formula) and make sure that that weight is added to all other components of the product and that therefore when I go to do the "inertia measure" command on the product gives me a true weight?
I hope I've explained

please create a new discussion in the appropriate section and do not shoot one after the other in the same post.

thanks in advance



[Vittorio]

I have another question,
how do I calculate the weight of a product having parts to which I cannot attribute, through the formula, the weight.. I'll explain.
I put an aluminum plate that by means of the formula calculates with precision the weight by putting it, obviously, the material (aluminum steel etc)
instead if I'm given a math (we take a robot controller apt that in reality weighs 20kg ) and calculates the weight through the formula calculates me an abnormal weight because maybe this controller and full and the cad calculates the exact volume of the controller.
is there a way to manually transcribe the weight (without formula) and make sure that that weight is added to all other components of the product and that therefore when I go to do the "inertia measure" command on the product gives me a true weight?
I hope I've explained

please create a new discussion in the appropriate section and do not shoot one after the other in the same post.

thanks in advance

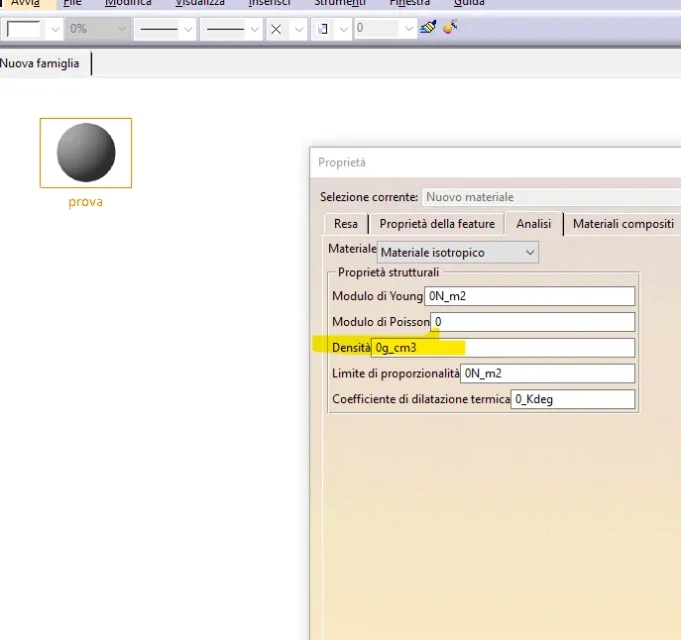

no matter what @falonef He's right, and I already suggested it in previous post. right hereto do what you ask you must insert a material by deceiving the specific weight until you get the desired weight.



[emanuele grasso]

Yes, indeed. from now on I will make a new discussion. . no is not what I ask
the material library to create the desired weights and density I already knew
thanks the same



[dalmott]

Yes, indeed. from now on I will make a new discussion. . no is not what I ask
the material library to create the desired weights and density I already knew
thanks the same

I'm sorry. @vittori indicated the correct way to get what you are looking for.
adjust the density to reach the finish line.



[emanuele grasso]

Hi.
I'm sorry if I have another question here but I can't create another conversation that's not private and I have an urgency. .
I created a drawing with all the views in drafting but won't allow me to quote it? is as if the quota command is disabled
Thank you.



[Vittorio]

Hi.
I'm sorry if I have another question here but I can't create another conversation that's not private and I have an urgency. .
I created a drawing with all the views in drafting but won't allow me to quote it? is as if the quota command is disabled
Thank you.

Are you trying to quote in the sheet background?



[Lettore espatriato]

you could title the post "everything you would like to know about catia, but you never dared to ask " .



[MassiVonWeizen]

Hi.
I'm sorry if I have another question here but I can't create another conversation that's not private and I have an urgency. .
I created a drawing with all the views in drafting but won't allow me to quote it? is as if the quota command is disabled
Thank you.

@emanuele fat so urgent and then you disappeared; @vittori He asked you a question, it's your interest to answer him. If you've solved, bring the solution back.



[emanuele grasso]

Save. @massivonweizen, in a very polite way, I don't think you have to do anybody's veins. I solved the problem myself and forgot to answer Mr. @vittori Thank you for giving me a lot of advice. having had a lot to do I no longer looked at the blog



[MassiVonWeizen]

Save. @massivonweizen, in a very polite way, I don't think you have to do anybody's veins. I solved the problem myself and forgot to answer Mr. @vittori Thank you for giving me a lot of advice. having had a lot to do I no longer looked at the blog

Don't worry, I'm not doing anybody's veins. I'm a bitch.
as I have already said often, if you think of my wrong or inadequate behavior there is a nice button under the left post with written signal or write a message to the moderators of the forum.
have you solved?, then write how to help who will have the same problem in the future.



[HerTempleDown]

small chicca for those who do not have a pdm:

If you create a parameter in the 2d and then select it to create one from the 3d you will have a connection between 3d and 2d.

Could you come back very comfortable in having to open the drawings from 3d?

Hello, hello. I came across this answer. Could you please explain it to me?



[Vittorio]

Hello, hello. I came across this answer. Could you please explain it to me?

@falonef I took the license to answer your place.. even because the idea was yours

in your catdrawing you need to create a parameter , it could also be a string parameter
example : link=xxxxthen enter your catpart and create a string parameter
example: colleg_dis= and click on aggiungi formulaafter which you position in the catdrawing window and go to select the parameter "link"
will ask if you want to maintain the link and click "yes"

you will find on the tree the parameter with the connection.

after which you close everything.. and when you open your catpart and the menu ---> links you will see that in the section documents pointed you will find your catdrawin

I hope I've been clear
Let me know.



[falonef]

thanks victorious for the description of the methodology.

Let's see if there's an account



[HerTempleDown]

@falonef I took the license to answer your place.. even because the idea was yours

in your catdrawing you need to create a parameter , it could also be a string parameter
example : link=xxxxthen enter your catpart and create a string parameter
example: colleg_dis= and click on aggiungi formulaafter which you position in the catdrawing window and go to select the parameter "link"
will ask if you want to maintain the link and click "yes"

you will find on the tree the parameter with the connection.

after which you close everything.. and when you open your catpart and the menu ---> links you will see that in the section documents pointed you will find your catdrawin

I hope I've been clear
Let me know.

thanks for the answer and patience, surely will work



[HerTempleDown]

in the 2d I entered link parameter.
when I go into the product to do the same thing I can't insert the parameter



[Vittorio]

1st step
in your catdrawing you have to create a string variable, but do not close your catdrawing
2nd step you need to create a string variable in your catproduct
and click on aggiungi formula just click on aggiungi formula... Step on the catdrawing window and click on the tree at your variable.
You'll get the letter. you want to maintain the click link si fine operation



[HerTempleDown]

Okay clear now, thank you very much. succeeded



[falonef]

thanks for the answer and patience, surely will work

How will it work? Didn't you test it?

I kindly recommend that you do so because you have expressly asked
