tabella coordinate

[raffaele89]

Hi.

I wondered if it was possible from a 3d file of a pipe to succeed in having a x y z coordinate table of the individual points, or how can I do to have the coordinates... .

Thank you.



[Error404]

hello, do you want to get coordinates on .ipt files or drawing?



[raffaele89]

Hi.
to me these coordinates serve to then program a curvetubi so I also enjoy drawing

thank you very much for the interest



[Error404]

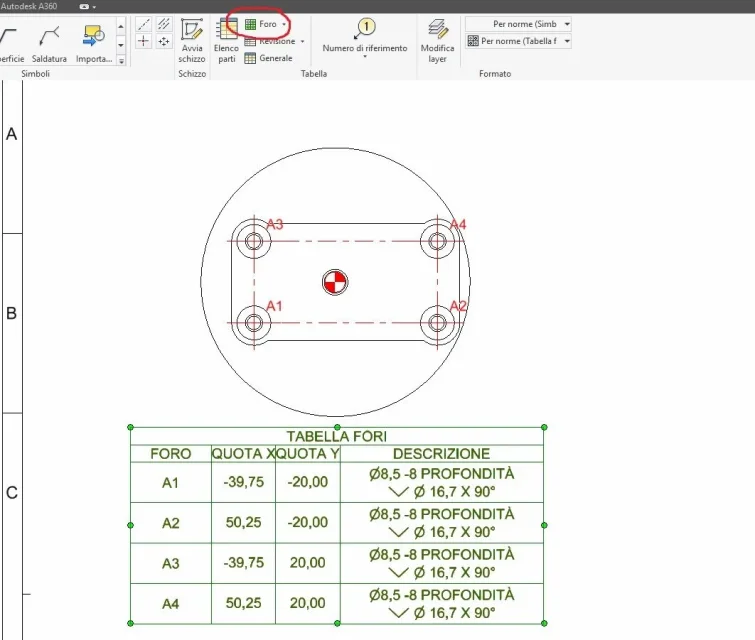

in the design there is the function on purpose, I highlighted it in red, asks you to insert the origin, then automatically creates a table with the coordinates of the holes. the table is completely customizable.



[raffaele89]

in the design there is the function on purpose, I highlighted it in red, asks you to insert the origin, then automatically creates a table with the coordinates of the holes. the table is completely customizable.
View attachment 46105

perfect. . .

and if you also want coordinates only to bend the tube with the x y z curvetubi??? ?



[Error404]

perfect. . .

and if you also want coordinates only to bend the tube with the x y z curvetubi??? ?

I don't think it's possible, at least I don't know how to do it.



[raffaele89]

Thank you very much. . .
One last thing I'm gonna tie you a video,
where I would need to do what he does in the video but I didn't understand how he did......https://www.youtube.com/watch?v=-1sdqmfvlnmIf you can help me...



[Error404]

Thank you very much. . .
One last thing I'm gonna tie you a video,
where I would need to do what he does in the video but I didn't understand how he did......https://www.youtube.com/watch?v=-1sdqmfvlnmIf you can help me...

What can't you do? Which part? also tell me the minute of the video where he does what you can't.



[raffaele89]

the table that appears at the beginning where he inserts the values of the tube............ .



[Error404]

I press that I have no professional inventor so I can't try, however in the table asks you the number of points. going intuition would tell me that they are the points in the tube, so you have to take the number of fittings and multiply by 2. then you will have to give the coordinates, the radius of the fittings and the two diameters. not having that function I make a simple swipe. I can't help you otherwise, I'm sorry.



[raffaele89]

ok thanks the same....we see if someone can help
